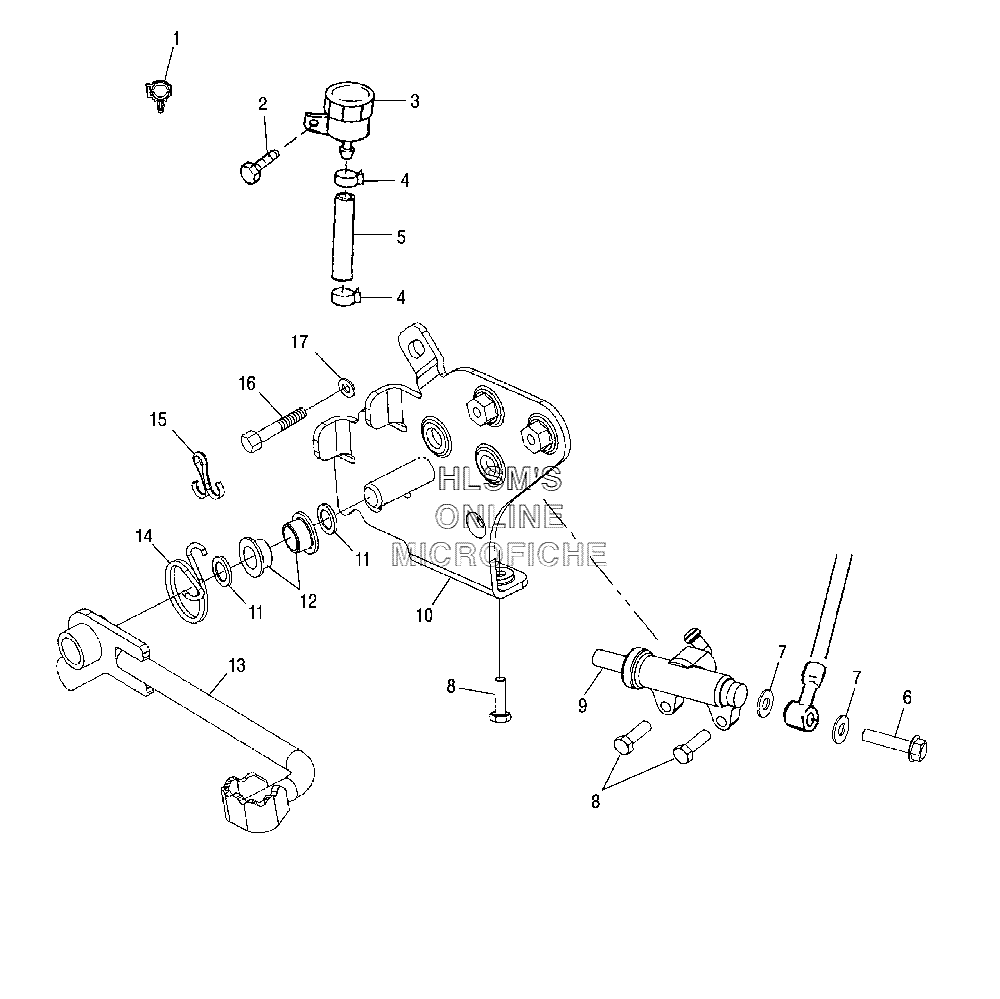

BRAKE - REAR MASTER CYLINDER для Polaris Trail Boss 330 (A06CA32AB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
27512232 BOLTBOLT
-
31930854 RESERVOIR ASSY, BRAKE (RIGHT)RESERVOIR ASSY, BRAKE (RIGHT)
-
47080003 CLAMP, HOSECLAMP, HOSE
-
51910812 HOSE-RESERVOIR (1/4 ID 19 IN)HOSE-RESERVOIR (1/4 ID 19 IN)
-
61910499 BOLT-BANJO (10MMX1.00)BOLT-BANJO (10MMX1.00)
-
75410988 SEALSEAL
-
87515158 SCREWSCREW
-
91910791 BRAKE MASTER CYLINDER ASSY., FOOTBRAKE MASTER CYLINDER ASSY., FOOT
-
101910764-067 WELD-BRAKE MOUNT (BLACK)WELD-BRAKE MOUNT (BLACK)
-
117555919 WASHERWASHER
-
125433189 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
131910767-067 WELD-BRAKE PEDAL (BLACK)WELD-BRAKE PEDAL (BLACK)
-
147041750 SPRING-TORSION, BRAKESPRING-TORSION, BRAKE
-
157661401 PIN, COTTERPIN, COTTER
-
167512232 BOLTBOLT
-
177558301 WASHER, FLATWASHER, FLAT
