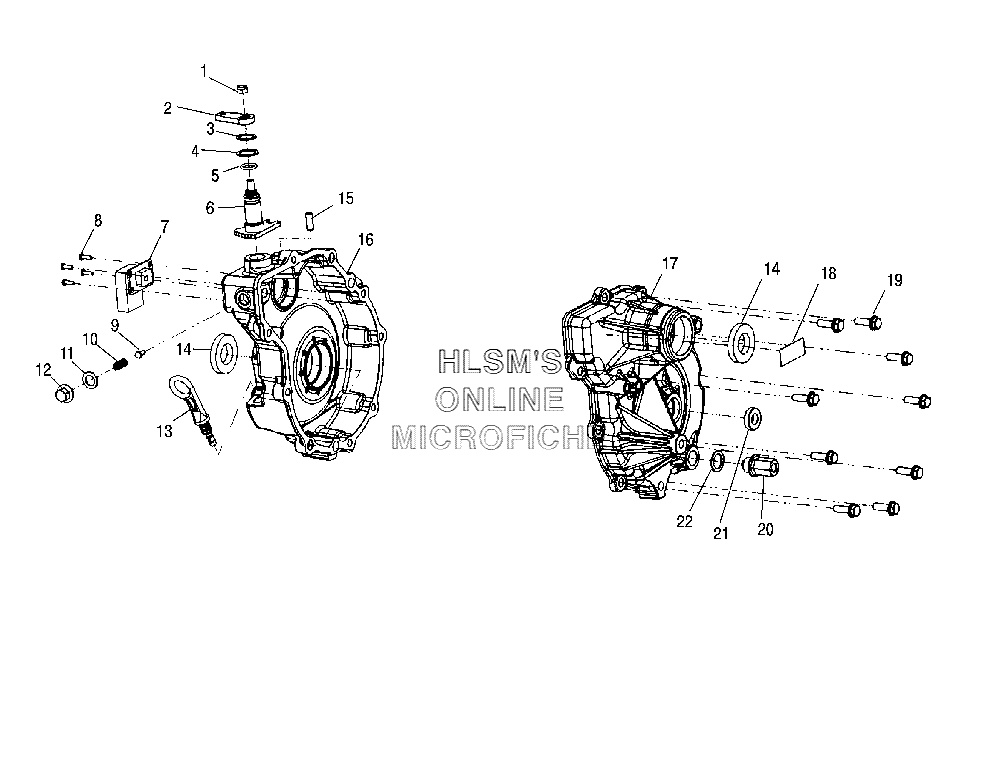

GEARCASE для Polaris Trail Boss 330 (A06CA32AB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
13233961 NUT-LOCK HEX FLANGE NYLONNUT-LOCK HEX FLANGE NYLON
-
23234148 BELLCRANKBELLCRANK
-
33233045 RING, RETAININGRING, RETAINING
-
43233040 WASHERWASHER
-
53233548 O-RINGO-RING
-
63233679 SHIFT-SHAFTSHIFT-SHAFT
-
73234002 SWITCH-GEAR INDICATIONSWITCH-GEAR INDICATION
-
83233749 SCREWSCREW
-
93233680 BULLET-SHIFTINGBULLET-SHIFTING
-
103233681 SPRING-COMPRESSIONSPRING-COMPRESSION
-
113233872 WASHER-NYLONWASHER-NYLON
-
123233682 PLUG, DETENTPLUG, DETENT
-
133233478 DIPSTICKDIPSTICK
-
143233788 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
153233524 TUBE, VENTTUBE, VENT
-
163234049 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
173234048 GEARCASE (LEFT)GEARCASE (LEFT)
-
183233636 DECAL-SWITCHDECAL-SWITCH
-
193233252 SCREWSCREW
-
203233687 PLUGPLUG
-
213233527 BUSHING, PIVOTBUSHING, PIVOT
-
223233035 WASHERWASHER
-
-1341501 GEARCASE ASSY. (INCL. ALL)GEARCASE ASSY. (INCL. ALL)
