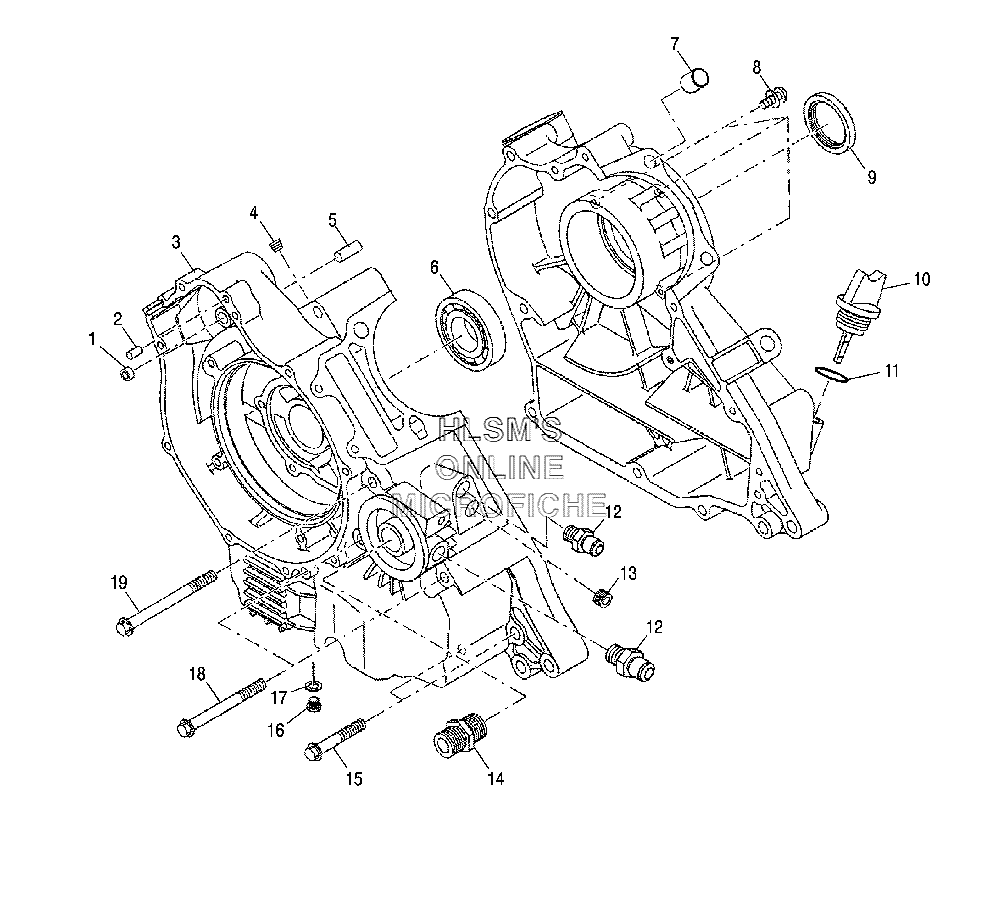

CRANKCASE для Polaris Trail Boss 330 (A06CA32AB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
13083669 BUSHING, STARTERBUSHING, STARTER
-
23080103 PIN, DOWELPIN, DOWEL
-
33087125 CRANKCASE ASSY (INCL. 1-6, 9, 13, 15, 18, 19)CRANKCASE ASSY (INCL. 1-6, 9, 13, 15, 18, 19)
-
43087157 PLUG-BLIND ASSYPLUG-BLIND ASSY
-
53087116 PIN, DOWELPIN, DOWEL
-
63086395 BEARING-BALLBEARING-BALL
-
73087266 KNOCK, PIPEKNOCK, PIPE
-
83084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
93084839 SEAL, OILSEAL, OIL
-
103087128 GAUGE-OILGAUGE-OIL
-
113087065 O-RINGO-RING
-
123087066 UNIONUNION
-
133087155 PLUGPLUG
-
143084849 UNION-OIL PUMPUNION-OIL PUMP
-
153087156 BOLT-FLANGEBOLT-FLANGE
-
163086749 PLUGPLUG
-
173082956 GASKETGASKET
-
183087117 BOLT-FLANGEBOLT-FLANGE
-
193086399 BOLT, FLANGEBOLT, FLANGE
