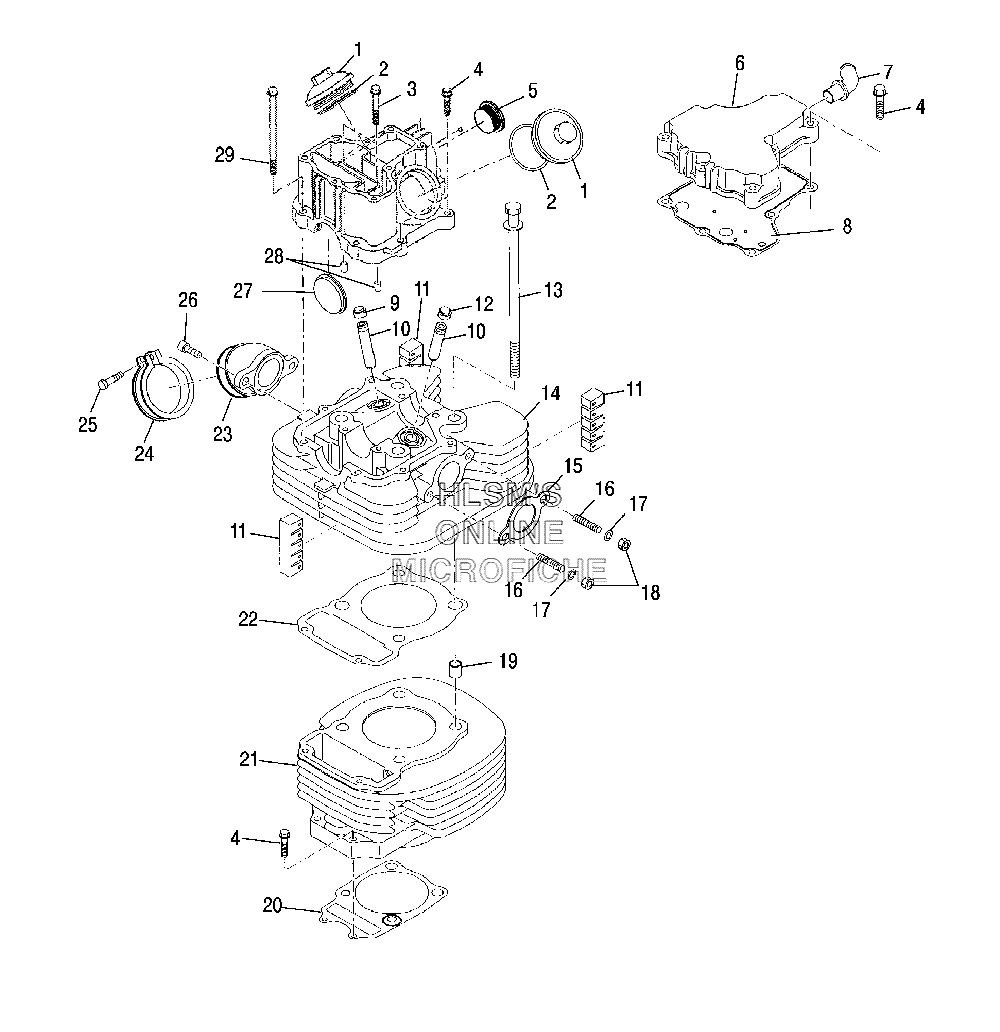

CYLINDER для Polaris Trail Boss 330 (A06CA32AB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
13087259 COVER-VALVECOVER-VALVE
-
23086414 O-RINGO-RING
-
33087159 BOLT-FLANGEBOLT-FLANGE
-
43084874 BOLT, FLANGEBOLT, FLANGE
-
53089272 PLUG ASSYPLUG ASSY
-
63089271 COVER-BREATHER ASSY (INCL. 7)COVER-BREATHER ASSY (INCL. 7)
-
73085850 PIPE ASSYPIPE ASSY
-
83087034 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
93084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
103084994 GUIDE, VALVEGUIDE, VALVE
-
113084798 FIN DAMPER AFIN DAMPER A
-
123084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
133086418 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
143089270 CYLINDER HEAD ASSY (INCL. 9, 10, 12, 14, 16, 28)CYLINDER HEAD ASSY (INCL. 9, 10, 12, 14, 16, 28)
-
153086421 GASKET, EXHAUSTGASKET, EXHAUST
-
163085326 STUDSTUD
-
173080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
183086787 NUTNUT
-
193087266 KNOCK, PIPEKNOCK, PIPE
-
203086407 GASKET-CYLINDERGASKET-CYLINDER
-
213087236 CYLINDER UNITCYLINDER UNIT
-
223087238 GASKET, HEADGASKET, HEAD
-
233087050 ADAPTER ASSYADAPTER ASSY
-
243083166 ADAPTER BAND ASSY (INCL. 25)ADAPTER BAND ASSY (INCL. 25)
-
253081497 SCREW, PAN HEADSCREW, PAN HEAD
-
263081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
273086416 GASKET-CAMGASKET-CAM
-
283087275 PIPE KNOCKPIPE KNOCK
-
293087160 BOLT-FLANGEBOLT-FLANGE
