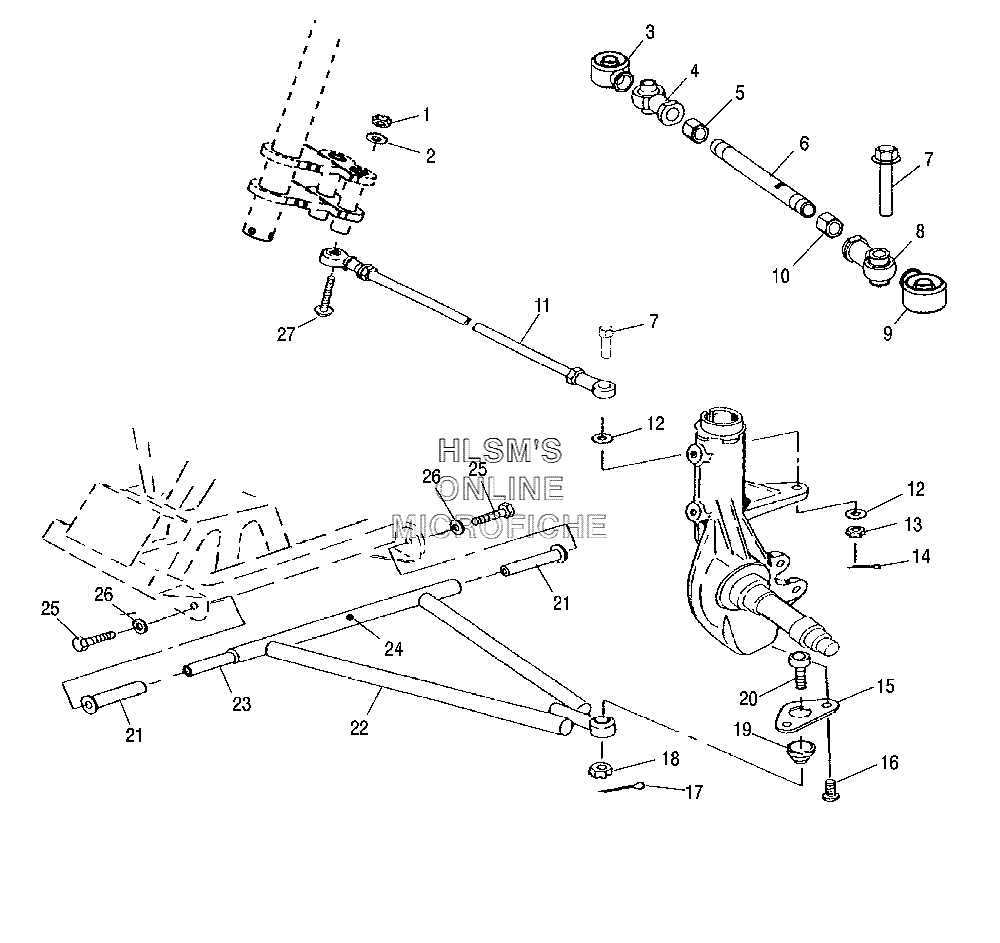

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Trail Boss 330 (A06CA32AB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27558403 WASHER, WROUGHTWASHER, WROUGHT
-
35411291 SEAL, BOOT, ROD END, 1/2 IN (IF BUILT BEFORE 10/01/05)SEAL, BOOT, ROD END, 1/2 IN (IF BUILT BEFORE 10/01/05)
-
35412928 BOOT-SEAL, ROD END, 1/2 IN (IF BUILT AFTER 10/01/05)BOOT-SEAL, ROD END, 1/2 IN (IF BUILT AFTER 10/01/05)
-
47061034 ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT BEFORE 10/01/05)ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT BEFORE 10/01/05)
-
47061139 ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT AFTER 10/01/05)ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT AFTER 10/01/05)
-
57542711 NUT-JAMNUT-JAM
-
65134242 ROD-TIE (1/2-20X11.45)ROD-TIE (1/2-20X11.45)
-
77517909 BOLTBOLT
-
87061054 ROD-END 10MM (IF BUILT BEFORE 10/01/05)ROD-END 10MM (IF BUILT BEFORE 10/01/05)
-
87061138 ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)
-
95411920 BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)
-
95412929 BOOT-SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)BOOT-SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)
-
107547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
111821498 TIE ROD ASSY. (1/2-20X13.4) (INCL. 3-8) (IF BUILT BEFORE10/01/05)TIE ROD ASSY. (1/2-20X13.4) (INCL. 3-8) (IF BUILT BEFORE10/01/05)
-
111822851 TIE ROD ASSY. (1/2-20X14.16) (INCL. 3-8) (IF BUILT AFTER 10/01/05)TIE ROD ASSY. (1/2-20X14.16) (INCL. 3-8) (IF BUILT AFTER 10/01/05)
-
127556099 WASHERWASHER
-
137547177 NUTNUT
-
147661407 COTTER PINCOTTER PIN
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
177661203 PIN, COTTERPIN, COTTER
-
187542438 NUT, CASTLENUT, CASTLE
-
195410548 BOOT, RUBBERBOOT, RUBBER
-
207080927 BALL-JOINTBALL-JOINT
-
215434551 BUSHING-A-ARM, LONG (BLACK)BUSHING-A-ARM, LONG (BLACK)
-
222202278 A-FRAME KIT (LEFT) (INCL. 21, 25, 26) (MODEL 1541872)A-FRAME KIT (LEFT) (INCL. 21, 25, 26) (MODEL 1541872)
-
222202279 A-FRAME KIT (RIGHT) (INCL. 21, 25, 26) (MODEL 1541873)A-FRAME KIT (RIGHT) (INCL. 21, 25, 26) (MODEL 1541873)
-
235133806 SHAFT-A-ARMSHAFT-A-ARM
-
247080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
257512492 SCREWSCREW
-
267555832 WASHERWASHER
-
277518033 BOLTBOLT
