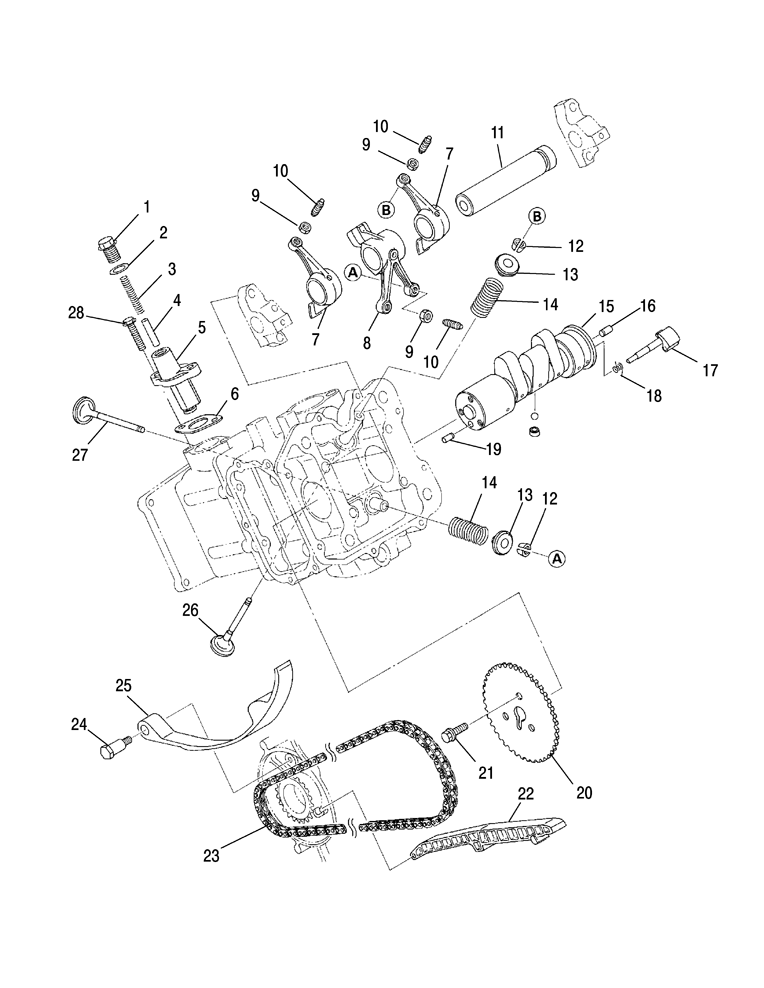

CAMSHAFT W/ VALVE ASSY. для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET, PLUGGASKET, PLUG
-
33087131 SPRING, TENSIONERSPRING, TENSIONER
-
43087132 PINPIN
-
53086493 TENSIONER ASSY (INCL. 1-4)TENSIONER ASSY (INCL. 1-4)
-
63086448 GASKET-TENSIONERGASKET-TENSIONER
-
73084910 ROCKER ARM ASSY, INTAKE (INCL. 9,10)ROCKER ARM ASSY, INTAKE (INCL. 9,10)
-
83084913 ROCKER ARM ASSY, EXHAUST (INCL. 9,10)ROCKER ARM ASSY, EXHAUST (INCL. 9,10)
-
93084912 NUTNUT
-
103084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
113084909 SHAFT, ROCKERSHAFT, ROCKER
-
123084908 COLLET, VALVECOLLET, VALVE
-
133087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
143086892 SPRING, VALVESPRING, VALVE
-
153085855 CAMSHAFT ASSY (INCL. 16-19)CAMSHAFT ASSY (INCL. 16-19)
-
163086838 PIN, DOWELPIN, DOWEL
-
173085348 LEVER, RELEASELEVER, RELEASE
-
183085076 SPRING, RETURNSPRING, RETURN
-
193084899 PIN, DOWELPIN, DOWEL
-
203084914 SPROCKET 2SPROCKET 2
-
213081657 BOLTANDWASHER ASSY.BOLTANDWASHER ASSY.
-
223084916 GUIDE, CHAINGUIDE, CHAIN
-
233084915 CHAIN, TIMINGCHAIN, TIMING
-
243084924 ASSY., BOLT, PIVOT, LEVERASSY., BOLT, PIVOT, LEVER
-
253084917 LEVERLEVER
-
263085349 VALVE, INTAKEVALVE, INTAKE
-
273085412 VALVE, EXHAUSTVALVE, EXHAUST
-
283083361 BOLT, FLANGEBOLT, FLANGE
