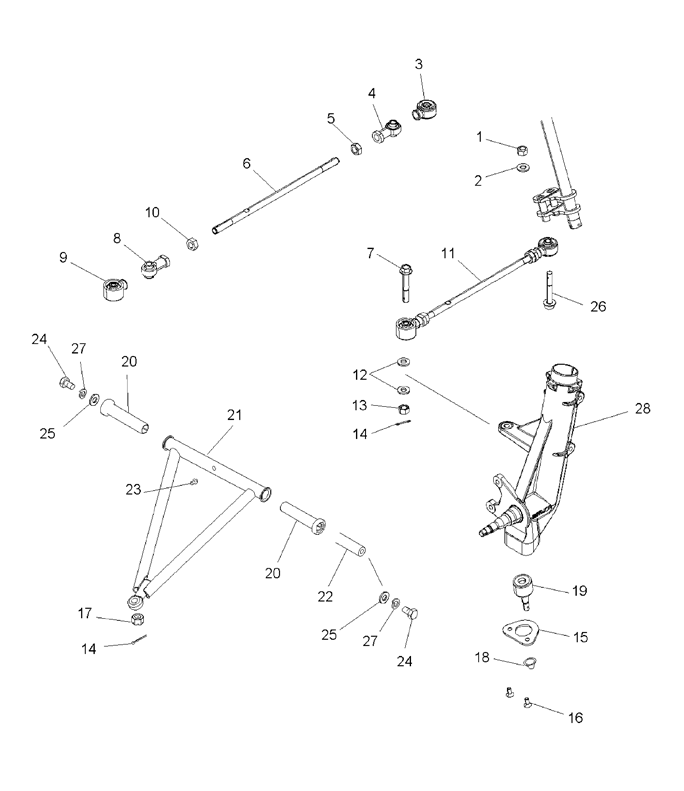

SUSPENSION - FRONT для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27558403 WASHER, WROUGHTWASHER, WROUGHT
-
35412928 BOOT-SEAL, ROD END, 1/2 INBOOT-SEAL, ROD END, 1/2 IN
-
47061139 ROD-END, 3/8, 1/2-20RIGHT HAND, 44DEGROD-END, 3/8, 1/2-20RIGHT HAND, 44DEG
-
57542711 NUT-JAMNUT-JAM
-
65134242 ROD-TIE, 1/2-20X11.45ROD-TIE, 1/2-20X11.45
-
77517909 BOLT-M10X1.25X65, HX WASH HDBOLT-M10X1.25X65, HX WASH HD
-
87061138 ROD-END, 10MM, 1/2-20LEFT HAND, 42 DEGROD-END, 10MM, 1/2-20LEFT HAND, 42 DEG
-
95412929 BOOT-SEAL, ROD END, 10MMBOOT-SEAL, ROD END, 10MM
-
107547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
111822851 ASSY-TIE ROD, 1/2-20X14.16 (INCL. 3-6,8-10)ASSY-TIE ROD, 1/2-20X14.16 (INCL. 3-6,8-10)
-
127556099 WASHERWASHER
-
137547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
147661203 PIN, COTTERPIN, COTTER
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
177542438 NUT, CASTLENUT, CASTLE
-
185412658 BOOT-BALLJOINT, GREASELESS, STRUTBOOT-BALLJOINT, GREASELESS, STRUT
-
197061153 BALLJOINT-GREASELESS, STRUTBALLJOINT-GREASELESS, STRUT
-
205434551 BUSHING-A-ARM, LONG (BLACK)BUSHING-A-ARM, LONG (BLACK)
-
212202276 A-FRAME KIT (1541864) (LEFT) (INCL. 14,20,22-25,27)A-FRAME KIT (1541864) (LEFT) (INCL. 14,20,22-25,27)
-
212202277 A-FRAME KIT(1541865) (RIGHT) (INCL. 14,20,22-25,27)A-FRAME KIT(1541865) (RIGHT) (INCL. 14,20,22-25,27)
-
225133806 SHAFT-A-ARMSHAFT-A-ARM
-
237080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
247512492 SCREWSCREW
-
257555832 WASHERWASHER
-
267518033 BOLT-3/8-24X4 SPECIAL FLANGE-YBOLT-3/8-24X4 SPECIAL FLANGE-Y
-
277552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
285135135 SUPPORT-STRUT/SPINDLE(MACH)LHSUPPORT-STRUT/SPINDLE(MACH)LH
-
285135136 SUPPORT-STRUT/SPINDLE(MACH)RHSUPPORT-STRUT/SPINDLE(MACH)RH
