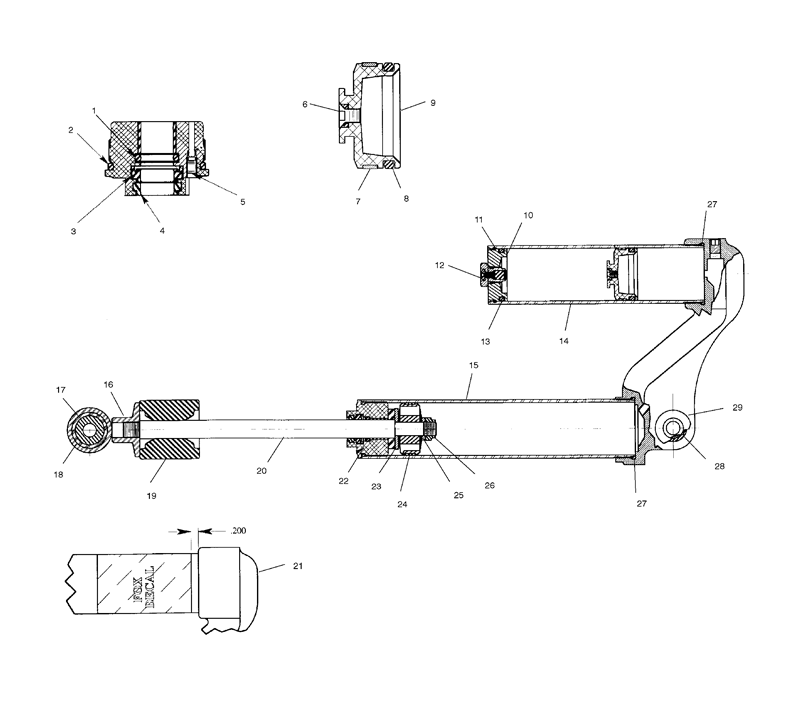

SUSPENSION - REAR SHOCK для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
11500021 O-RING INNERO-RING INNER
-
21500020 O-RING, .103W-1.299IDO-RING, .103W-1.299ID
-
31500266 U-CUP-4300 URETH, 036-01-006U-CUP-4300 URETH, 036-01-006
-
41500527 SEAL, WIPERSEAL, WIPER
-
51500287 SCREW-#8-32X.375 800-10-002SCREW-#8-32X.375 800-10-002
-
61500018 SCREWSCREW
-
61500023 O-RING, OUTERO-RING, OUTER
-
71500006 RING, PISTON, FLOATING,RING, PISTON, FLOATING,
-
81500003 O-RING, ENDCAPO-RING, ENDCAP
-
91500011 PISTONPISTON
-
101500099 CAP, RESERV ASSY, (FOX)-ATV (INCL. 11,12,13)CAP, RESERV ASSY, (FOX)-ATV (INCL. 11,12,13)
-
111500097 RING-RETAINING, WIRERING-RETAINING, WIRE
-
121500019 SCREWSCREW
-
121500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
121500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
131500003 O-RING, ENDCAPO-RING, ENDCAP
-
141500286 RESERVOIR-N/A 6.0 810-00-003RESERVOIR-N/A 6.0 810-00-003
-
151500283 BODY, 1.46X9.05 204-04-036BODY, 1.46X9.05 204-04-036
-
161500013 EYELETEYELET
-
171500102 SLEEVESLEEVE
-
181500103 BSG-EYELETBSG-EYELET
-
195410987 BUMPER, R.COMPRESS., ATVBUMPER, R.COMPRESS., ATV
-
201500284 SHAFT-.498X10.15 229-19-004SHAFT-.498X10.15 229-19-004
-
211500282 CAP, BODY, P/B 804-00-026CAP, BODY, P/B 804-00-026
-
221500285 BEARING-1.46X1.15 812-02-002BEARING-1.46X1.15 812-02-002
-
231500017 PLATE, TOP OUTPLATE, TOP OUT
-
241500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500016 NUT, LOCKNUT, LOCK
-
271500004 O-RING, BODY, FOX, .139W-1.234IDO-RING, BODY, FOX, .139W-1.234ID
-
285020657 BUSHING, 1.40BUSHING, 1.40
-
291500104 BSG-EYELETBSG-EYELET
-
7041867 SHOCK-REAR MONO, GAS, CH, 19.08LGSHOCK-REAR MONO, GAS, CH, 19.08LG
