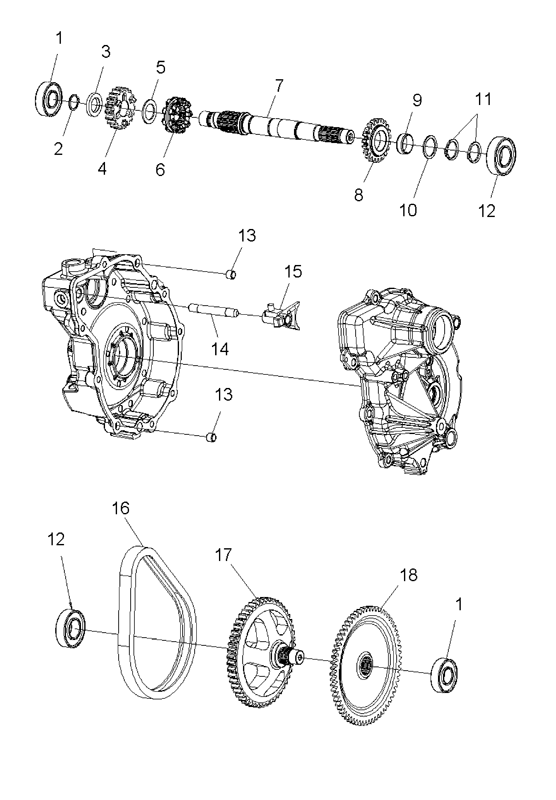

TRANSMISSION - INTERNALS для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
-1341501 GEARCASE ASSY, HR (INCL. ALL)GEARCASE ASSY, HR (INCL. ALL)
-
13233018 BEARINGBEARING
-
23233177 RING, RETAININGRING, RETAINING
-
33233673 WASHER-THRUSTWASHER-THRUST
-
43233674 SPROCKET-19TSPROCKET-19T
-
53233010 WASHERWASHER
-
63234237 ENGAGEMENT DOG, HIGH/REV, 9 PTENGAGEMENT DOG, HIGH/REV, 9 PT
-
73233676 SHAFT INPUT, HYBRIDSHAFT INPUT, HYBRID
-
83233677 GEAR, 21TGEAR, 21T
-
93233678 BUSHINGBUSHING
-
103233105 WASHERWASHER
-
113233106 RING, SNAPRING, SNAP
-
123233019 BEARINGBEARING
-
133233529 PIPE, KNOCKPIPE, KNOCK
-
143233684 SHAFT-SHIFTSHAFT-SHIFT
-
153233685 SHIFT-FORKSHIFT-FORK
-
163233111 CHAIN, SILENT, 60PCHAIN, SILENT, 60P
-
173234266 SPROCKET/OUTPUT SHAFT ASSYSPROCKET/OUTPUT SHAFT ASSY
-
183233690 GEAR, 64TGEAR, 64T
