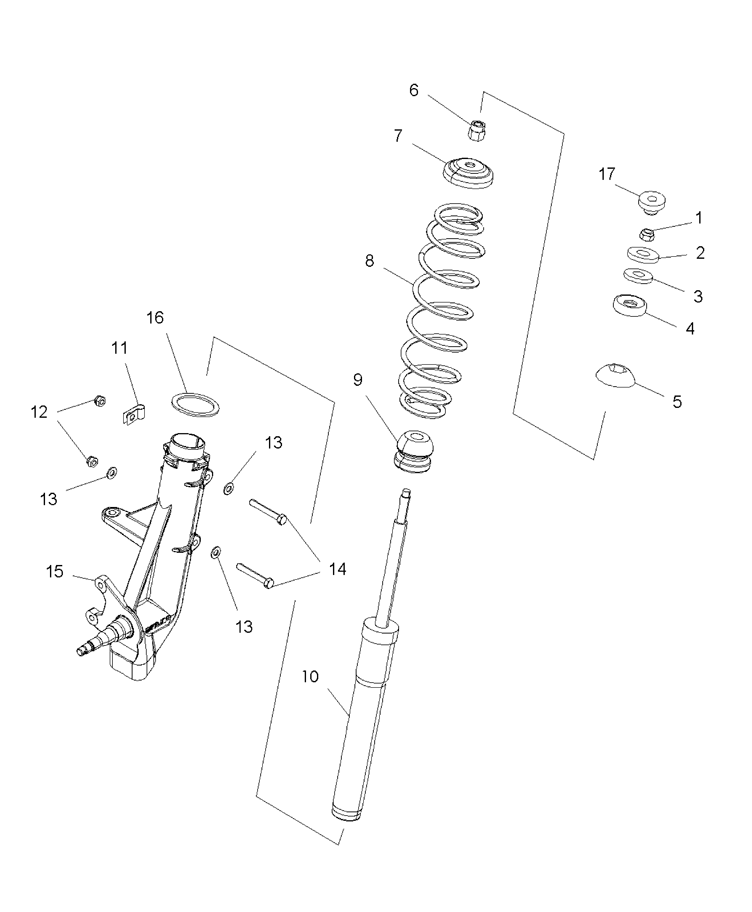

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 500 2X4 (A07BA50FA) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
55432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
65132062 SPACER-1/2-20SPACER-1/2-20
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87041603-067 SPRING, COIL(STRUT), LT.SPRING, COIL(STRUT), LT.
-
95412665 BUMPER-MCU, 17.8MM IDBUMPER-MCU, 17.8MM ID
-
107041762 STRUT-FRONT, 18X30MM, 184.7MM LTSTRUT-FRONT, 18X30MM, 184.7MM LT
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137558402 WASHER, FLATWASHER, FLAT
-
147515339 BOLTBOLT
-
155135135 SUPPORT-STRUT/SPINDLE(MACH)LHSUPPORT-STRUT/SPINDLE(MACH)LH
-
155135136 SUPPORT-STRUT/SPINDLE(MACH)RHSUPPORT-STRUT/SPINDLE(MACH)RH
-
165211115 WASHERWASHER
-
177052028 GROMMETGROMMET
