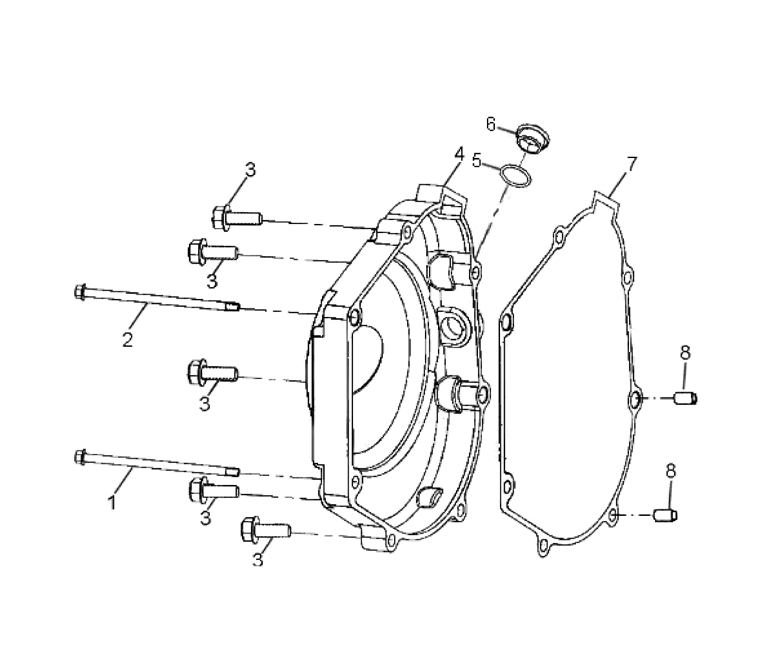

CRANKCASE COVER - RIGHT для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска
-
№АртикулНазвание
-
10452401 BOLT HEX, FLANGEBOLT HEX, FLANGE
-
20453587 BOLT COVER, CRANKCASEBOLT COVER, CRANKCASE
-
30452400 BOLT HEX, FLANGEBOLT HEX, FLANGE
-
40453353 COVER STATORCOVER STATOR
-
50452394 O RINGO RING
-
60452393 CAP HEAD COVERCAP HEAD COVER
-
70453423 GASKET CRANKCASEGASKET CRANKCASE
-
80452342 PIN DOWELPIN DOWEL
