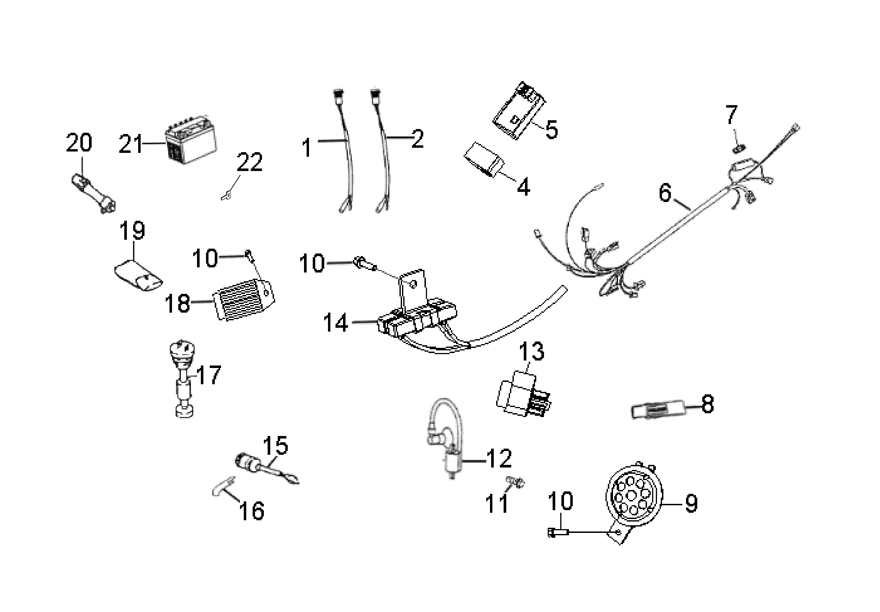

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска
-
№АртикулНазвание
-
10453486 INDICATOR NEUTRALINDICATOR NEUTRAL
-
20453485 INDICATOR REVERSEINDICATOR REVERSE
-
40453473 PAD RUBBER, CDIPAD RUBBER, CDI
-
50453472 CDI UNIT ASSYCDI UNIT ASSY
-
60453480 HARNESS MAIN WIREHARNESS MAIN WIRE
-
70453523 FUSEFUSE
-
80453501 WRISTBAND SAFETYWRISTBAND SAFETY
-
90451695 HORNHORN
-
100450701 BOLT HEX WASHERBOLT HEX WASHER
-
110452763 BOLT HEX, SEMSBOLT HEX, SEMS
-
120452309 COIL, IGNITION ASSUCOIL, IGNITION ASSU
-
130453488 STARTER RELAY ASSYSTARTER RELAY ASSY
-
140453315 RESISTOR ASSYRESISTOR ASSY
-
150453487 SWITCH, MAIN ASSYSWITCH, MAIN ASSY
-
160453417 SWITCH,MAIN ASSY,PRED90SWITCH,MAIN ASSY,PRED90
-
170451693 SWITCH, SAFETYSWITCH, SAFETY
-
180454003 RECTIFIER/REGULATOR-VOLTAGE 07RECTIFIER/REGULATOR-VOLTAGE 07
-
190453813 TOOL POUCHTOOL POUCH
-
200450891 SOCKETSOCKET
-
214011181 BATTERY-YUASA YTX5L,YOUTHBATTERY-YUASA YTX5L,YOUTH
-
220453372 KEY BLANK, 2006, (LEFT)KEY BLANK, 2006, (LEFT)
-
220453143 KEY BLANK, 2006KEY BLANK, 2006
