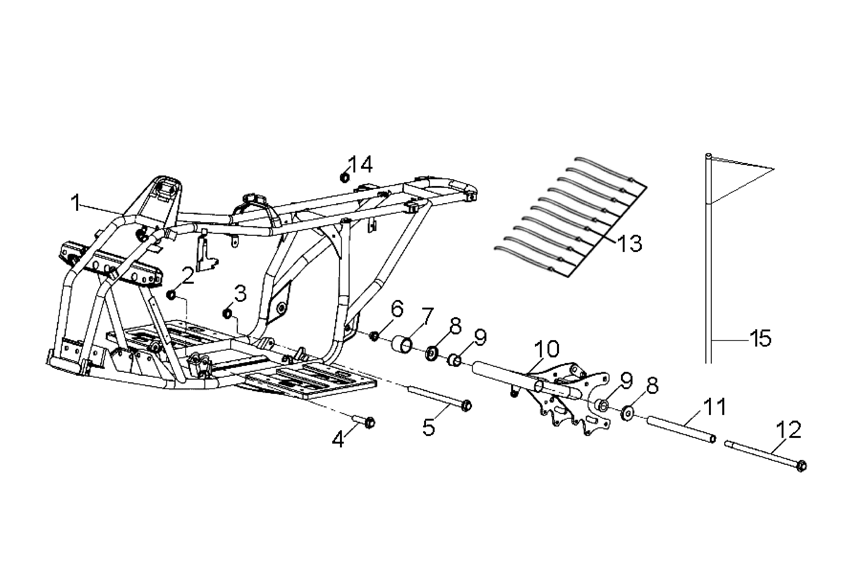

FRAME для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска
-
№АртикулНазвание
-
10453711-067 FRAME, SPORTSMAN ASSY (BLACK)FRAME, SPORTSMAN ASSY (BLACK)
-
20450882 NUT LOCK, NYLONNUT LOCK, NYLON
-
30450282 NUT LOCKNUT LOCK
-
40453675 BOLTBOLT
-
50453676 BOLTBOLT
-
60450878 NUT LOCK, NYLONNUT LOCK, NYLON
-
70453678 SLEEVE RUBBERSLEEVE RUBBER
-
80450303 COVER, SWING ARM SEALCOVER, SWING ARM SEAL
-
90450302 SEAT, GREASE CONTAINSEAT, GREASE CONTAIN
-
100454102 KIT-SWING ARM,07 SPTSM & OUTLAWKIT-SWING ARM,07 SPTSM & OUTLAW
-
110453495 TUBE SPACERTUBE SPACER
-
120453811 BOLT SWINGARMBOLT SWINGARM
-
130450559 STRAPSTRAP
-
140450268 NUT FLANGENUT FLANGE
-
152872428 FLAG, VISUALFLAG, VISUAL
