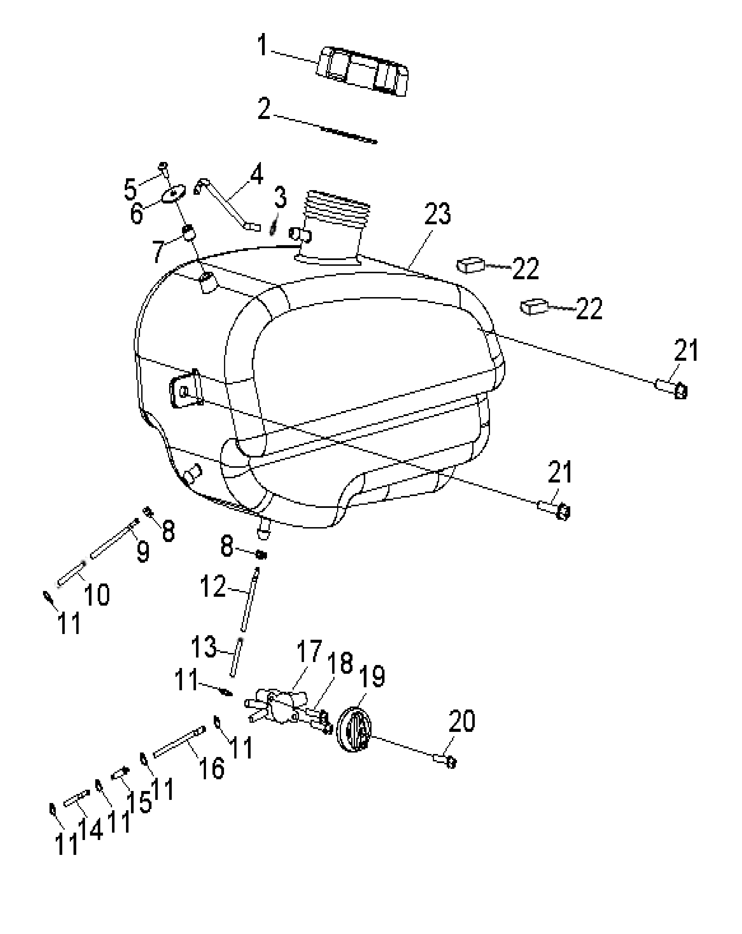

FUEL TANK для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска
-
№АртикулНазвание
-
10453928 CAP, FUEL ASSY (INCLUDES 2)CAP, FUEL ASSY (INCLUDES 2)
-
20453692 GASKET FUEL CAP, OUTLAWGASKET FUEL CAP, OUTLAW
-
30453944 CLAMPCLAMP
-
40453697 HOSE VENT, OUTLAWHOSE VENT, OUTLAW
-
50453720 SCREWSCREW
-
60453719 WASHERWASHER
-
70453716 SPACER TANK, FUELSPACER TANK, FUEL
-
80453693 CLAMP HOSECLAMP HOSE
-
90453741 TUBE FUEL, REAMED, SPORTSMANTUBE FUEL, REAMED, SPORTSMAN
-
100453946 SLEEVE HOSE, FUELSLEEVE HOSE, FUEL
-
110450054 CLIPCLIP
-
120453742 HOSE FUEL, REAMED, SPORTSMANHOSE FUEL, REAMED, SPORTSMAN
-
130453947 SLEEVE HOSE, FUELSLEEVE HOSE, FUEL
-
140450363-440 LINE FUELLINE FUEL
-
152520462 FILTER, FUEL 65 MICRONFILTER, FUEL 65 MICRON
-
160450363-440 LINE FUELLINE FUEL
-
170450996 MANUAL FUEL CUP, ASSY. (FUEL VALVE)MANUAL FUEL CUP, ASSY. (FUEL VALVE)
-
180450866 BOLT PANBOLT PAN
-
190453715 KNOB SHUT OFF, FUELKNOB SHUT OFF, FUEL
-
200453717 BOLTBOLT
-
210452215 BOLT HEXBOLT HEX
-
220453696 ADHESIVE ELE WIREADHESIVE ELE WIRE
-
230453718 TANK, FUEL, SPORTSMAN ASSYTANK, FUEL, SPORTSMAN ASSY
