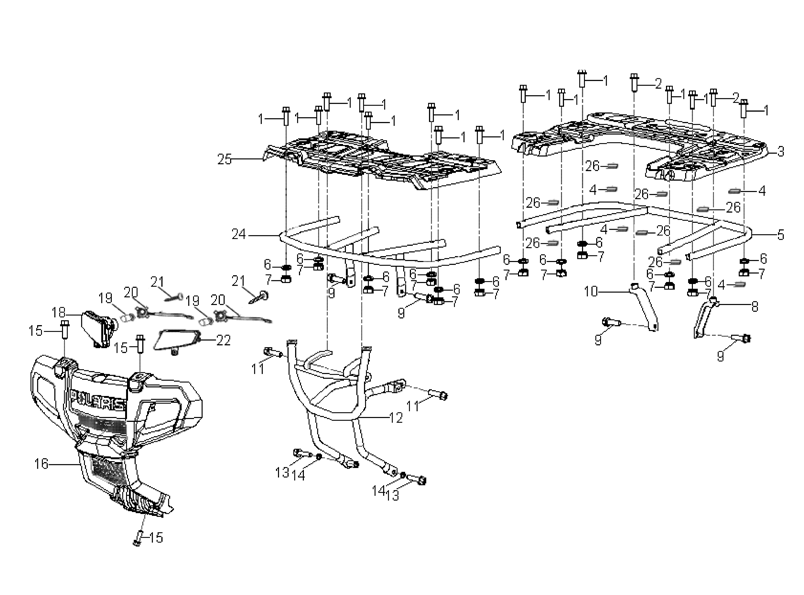

RACK AND BUMPER MOUNTING для Polaris SPORTSMAN 90 (A07FA09AB) (UTILITY RED) - 2007 года выпуска
-
№АртикулНазвание
-
10450310 BOLT HEX WSHR96318 06032 KBOLT HEX WSHR96318 06032 K
-
20453726 BOLTBOLT
-
30453335-070 RACK REAR, BLACKRACK REAR, BLACK
-
40453825 PAD RACK, RUBBERPAD RACK, RUBBER
-
50453727 SUPPORT RACK, REAR, BLACKSUPPORT RACK, REAR, BLACK
-
60452913 WASHER PLAIN, 5X25X2WASHER PLAIN, 5X25X2
-
70450808 NUT LOCKNUT LOCK
-
80453728 BRKT SUPPORT, RACK, REAR, LEFT HAND, BLACKBRKT SUPPORT, RACK, REAR, LEFT HAND, BLACK
-
90450887 BOLT HEX WFBOLT HEX WF
-
100453729 BRKT SUPPORT, RACK, REAR, RIGHT HAND, BLACKBRKT SUPPORT, RACK, REAR, RIGHT HAND, BLACK
-
110453518 BOLTBOLT
-
120453731-067 BUMPER FRONT, SPORTSMAN, BLACKBUMPER FRONT, SPORTSMAN, BLACK
-
130453730 BOLTBOLT
-
140450483 WASHER SPRINGWASHER SPRING
-
150452215 BOLT HEXBOLT HEX
-
160453352-070 FACIA FRONT, BLACKFACIA FRONT, BLACK
-
180453970 HEADLIGHT RIGHT HAND, SPORTSMAN 90HEADLIGHT RIGHT HAND, SPORTSMAN 90
-
190453570 BULB HEADLIGHTBULB HEADLIGHT
-
200453569 SOCKET HEADLIGHTSOCKET HEADLIGHT
-
210451703 SCREW, TAPPINGSCREW, TAPPING
-
220453969 HEADLIGHT LEFT HAND, SPORTSMAN 90HEADLIGHT LEFT HAND, SPORTSMAN 90
-
240453732 SUPPORT RACK, FRONT, BLACKSUPPORT RACK, FRONT, BLACK
-
250453334-070 RACK FRONT, BLACKRACK FRONT, BLACK
-
260453824 PAD RACK, RUBBERPAD RACK, RUBBER
