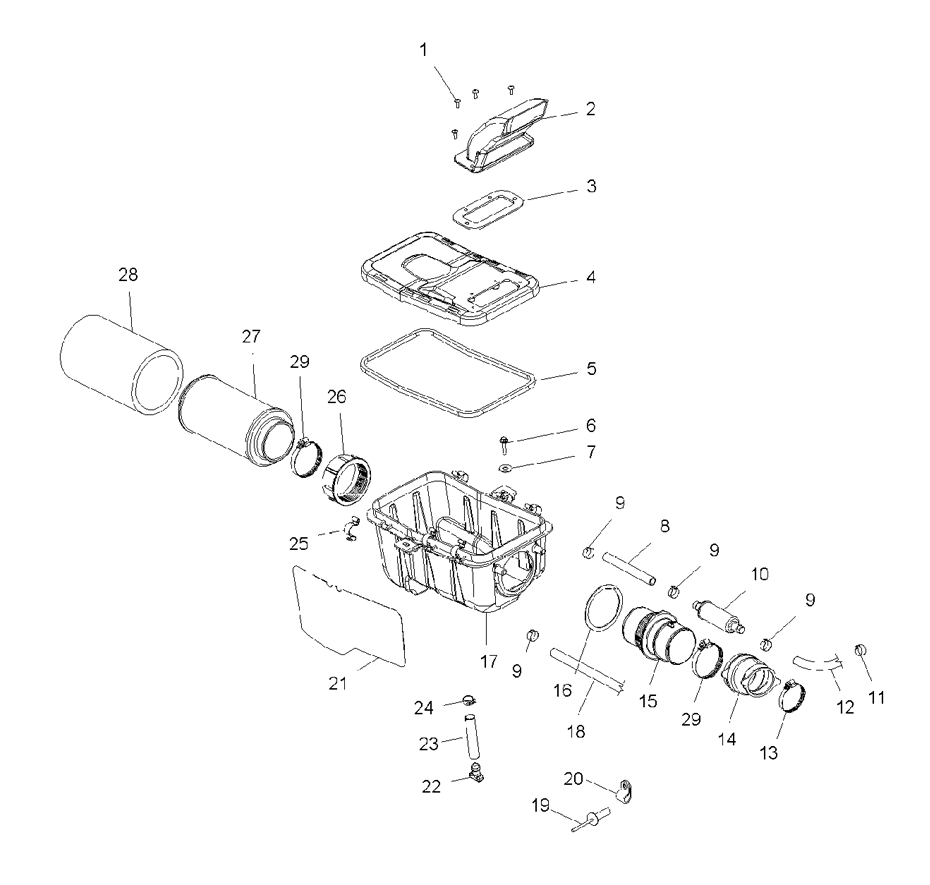

AIR INTAKE SYSTEM для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17517317 SCREWSCREW
-
25436944 DUCT-INLET,AIRBOX COVERDUCT-INLET,AIRBOX COVER
-
35411422 GASKET,INTAKEGASKET,INTAKE
-
45432868 COVER,AIRBOXCOVER,AIRBOX
-
55812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
67515180 SCREWSCREW
-
77558301 WASHER, FLATWASHER, FLAT
-
88450073-600 LINE,BREATHER,3/8 ID.LINE,BREATHER,3/8 ID.
-
97080699 CLAMP,HOSECLAMP,HOSE
-
102530029 FILTER,BREATHER,IN LINEFILTER,BREATHER,IN LINE
-
117080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
125411847 HOSE,BRTHR,FORMED,W/CHAFEHOSE,BRTHR,FORMED,W/CHAFE
-
137080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
145411414 BOOT,CARB,HYBRIDBOOT,CARB,HYBRID
-
155432473 DUCT,CARBURETOR,INLETDUCT,CARBURETOR,INLET
-
165830128 GASKET,CARBURETOR INLET DUCTGASKET,CARBURETOR INLET DUCT
-
175432774 BOX,AIR-BOX,AIR-
-
185411873 HOSE,BRTHR,SLIT,63CM,3/8I.DHOSE,BRTHR,SLIT,63CM,3/8I.D
-
197621432 RIVET,3/16X.402RIVET,3/16X.402
-
207080880 CLAMP-HOSE,.625 DIA VNL COATEDCLAMP-HOSE,.625 DIA VNL COATED
-
215813042 FOIL-AIRBOX,10.75 X 5.60FOIL-AIRBOX,10.75 X 5.60
-
225435299 PLUG-TRAPPLUG-TRAP
-
238450059-150 FUEL LINEFUEL LINE
-
247080650 CLAMP,HOSECLAMP,HOSE
-
255242044 CLIPCLIP
-
265432601 COLLAR,CARBURETOR,INLETCOLLAR,CARBURETOR,INLET
-
277080595 FILTER,AIRFILTER,AIR
-
285811633 FILTER,PRECLEAN,SLEEVEFILTER,PRECLEAN,SLEEVE
-
297080707 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
