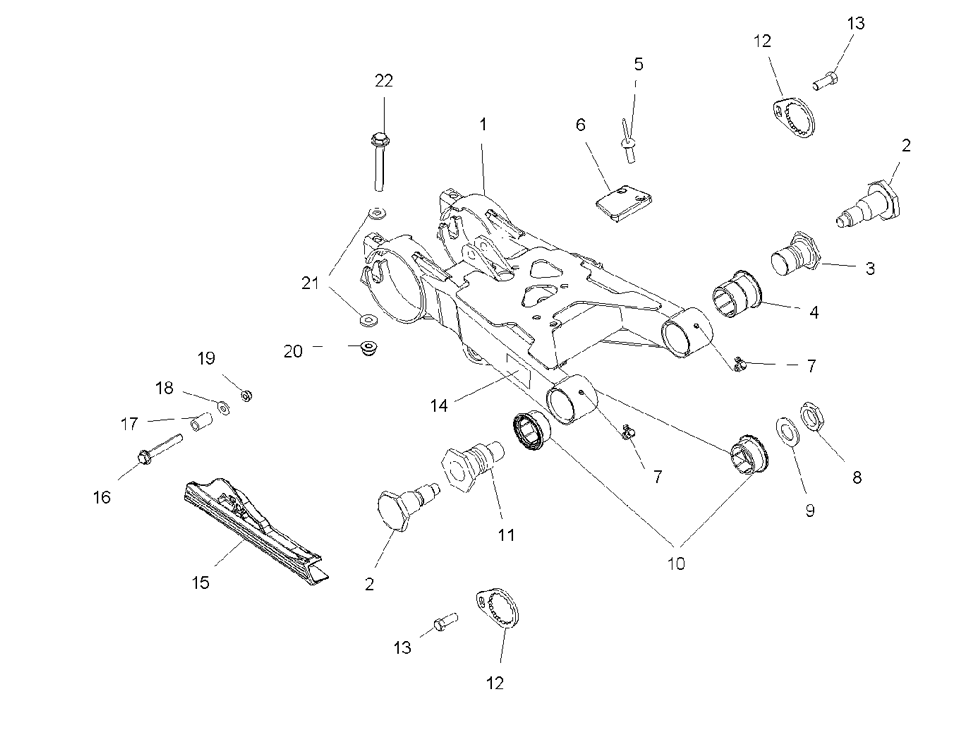

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
11541988-293 ASM-SWING ARM,LONG TRL,INDYRED [INCL. 4,7,10]ASM-SWING ARM,LONG TRL,INDYRED [INCL. 4,7,10]
-
25134321 BOLT-PIVOTBOLT-PIVOT
-
35133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
45434545 BUSHING-LEFT HAND,HYBRID, BLACKBUSHING-LEFT HAND,HYBRID, BLACK
-
57661046 RIVET-POP,3/16(.376-.500)RIVET-POP,3/16(.376-.500)
-
65432727 GUIDE,CHAIN PADGUIDE,CHAIN PAD
-
77080510 FITTING, ZERK,90 DEGREEFITTING, ZERK,90 DEGREE
-
87547082 NUT,HEX,JAMNUT,HEX,JAM
-
97556035 WASHER,FLATWASHER,FLAT
-
105434546 BUSHING-RIGHT HAND,HYBRID, BLACKBUSHING-RIGHT HAND,HYBRID, BLACK
-
115133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
125247488 BRKT-BOLT LOCKBRKT-BOLT LOCK
-
137515399 SCREWSCREW
-
147078572 DECAL-''CHAIN FREEPLAY'',HYBRIDDECAL-''CHAIN FREEPLAY'',HYBRID
-
155432854 GUARD,CHAINGUARD,CHAIN
-
167515304 SCREW-FLANGEDSCREW-FLANGED
-
175332828 BUSHINGBUSHING
-
187558402 WASHER,FLATWASHER,FLAT
-
197542343 NUT,FLANGENUT,FLANGE
-
207547066 NUT-7/16-20,NYLOK,YNUT-7/16-20,NYLOK,Y
-
217555883 WASHERWASHER
-
227512576 BOLTBOLT
