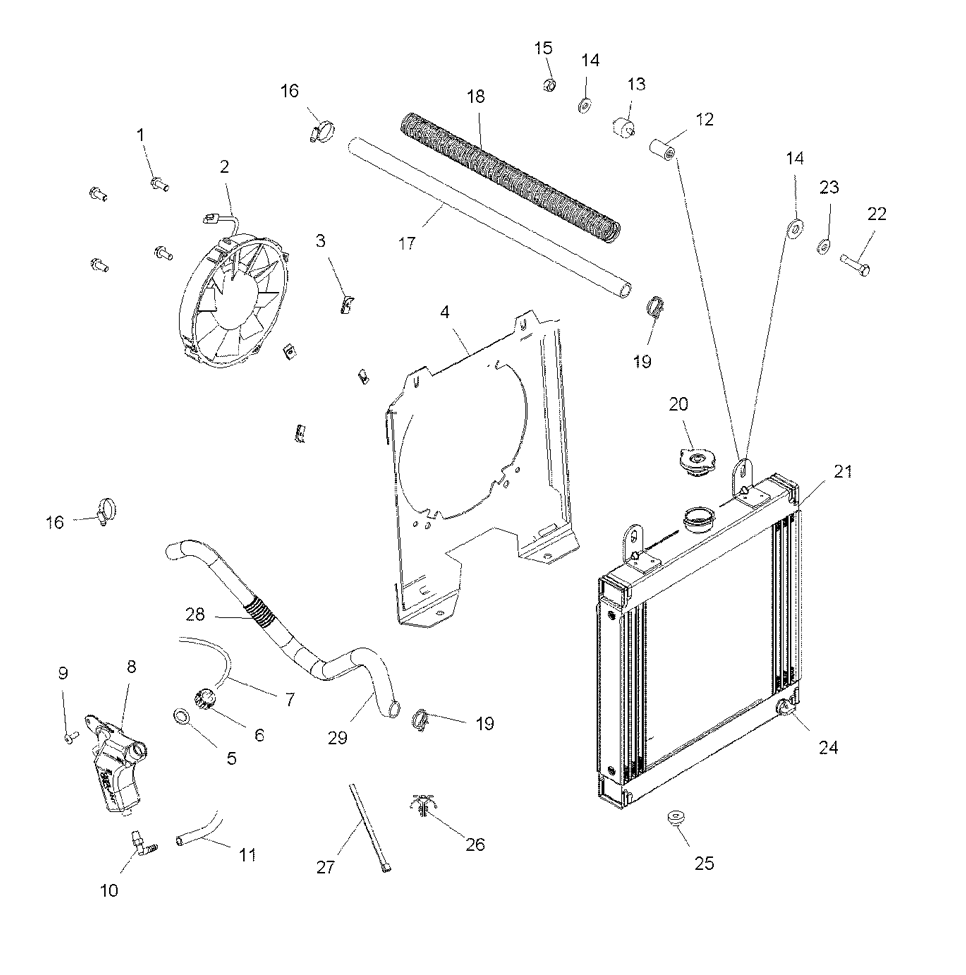

COOLING SYSTEM для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17517656 BOLTBOLT
-
22410430 ASM-FAN AND MOTOR,SPALASM-FAN AND MOTOR,SPAL
-
37670111 CLIP,UCLIP,U
-
45434043 SHROUD-FANSHROUD-FAN
-
55810279 GASKETGASKET
-
65437635 CAP-OVERFLOW BOTTLE,W/FITTINGCAP-OVERFLOW BOTTLE,W/FITTING
-
78360009-600 LINE,FUEL,1/8 ID,600 CM.LINE,FUEL,1/8 ID,600 CM.
-
85433410 TANK,SURGETANK,SURGE
-
97512084 SCREWSCREW
-
107052065 FITTING,90 DEGREEFITTING,90 DEGREE
-
118450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
125020937 SPACERSPACER
-
133110032 MOUNT, RUBBERMOUNT, RUBBER
-
147558301 WASHER, FLATWASHER, FLAT
-
157542122 NUT-NYLOKNUT-NYLOK
-
167080614 CLAMP,HOSECLAMP,HOSE
-
175411985 HOSE-UPPER ENGINEHOSE-UPPER ENGINE
-
185521511 GUARD-HOSE,12''GUARD-HOSE,12''
-
197080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
201240093 CAP-PRESSURE,13 LBS.CAP-PRESSURE,13 LBS.
-
211240177 RADIATORRADIATOR
-
227512240 BOLTBOLT
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247052296 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
255410584 BUSHING-MOUNT,LOWER RADIATORBUSHING-MOUNT,LOWER RADIATOR
-
267080965 MOUNT-CABLE TIE,.25MOUNT-CABLE TIE,.25
-
277080138 CABLE TIECABLE TIE
-
285521550 PLASTIC,HOSEGUARD 18''PLASTIC,HOSEGUARD 18''
-
295411989 HOSE-LOWER ENGINEHOSE-LOWER ENGINE
