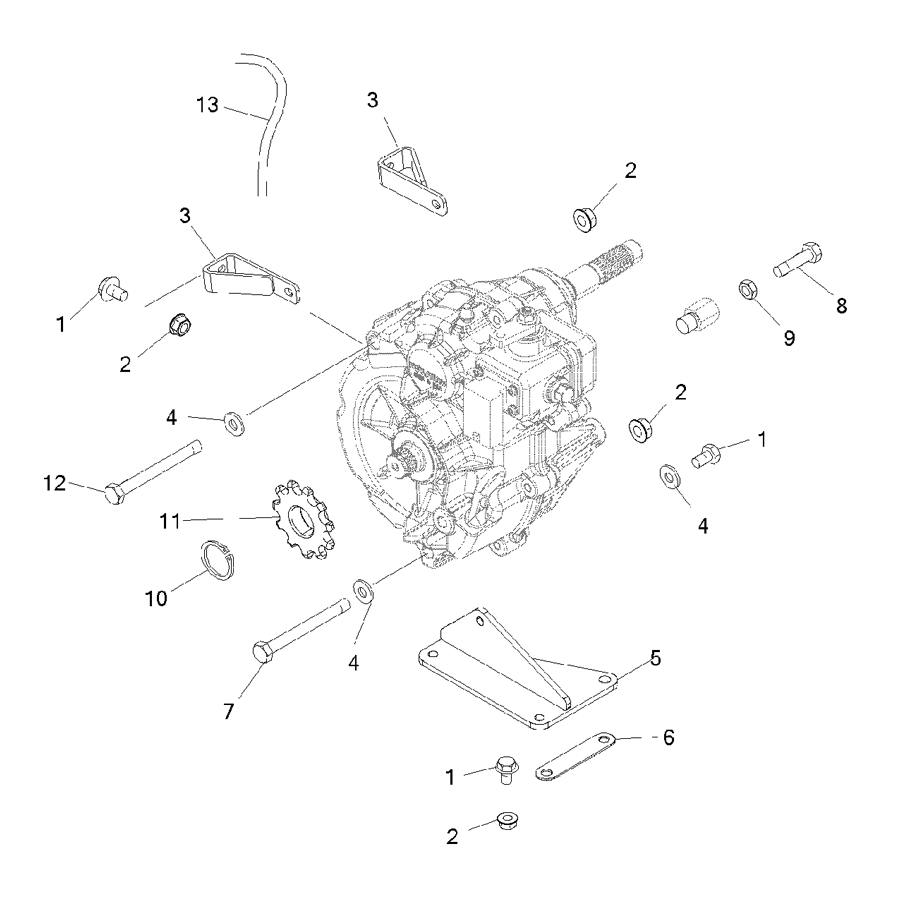

GEARCASE MOUNTING для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
27547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
31014772 TRANSMISSION MOUNTTRANSMISSION MOUNT
-
47555806 WASHER,FLATWASHER,FLAT
-
51012886-067 MOUNT,TRANSMISSION, BLACKMOUNT,TRANSMISSION, BLACK
-
65243296 PLATEPLATE
-
77517646 SCREWSCREW
-
87517631 SCREWSCREW
-
97542440 NUTNUT
-
107710434 RING,SNAPRING,SNAP
-
113221044 SPKT, 12TSPKT, 12T
-
127517640 SCREWSCREW
-
138450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
