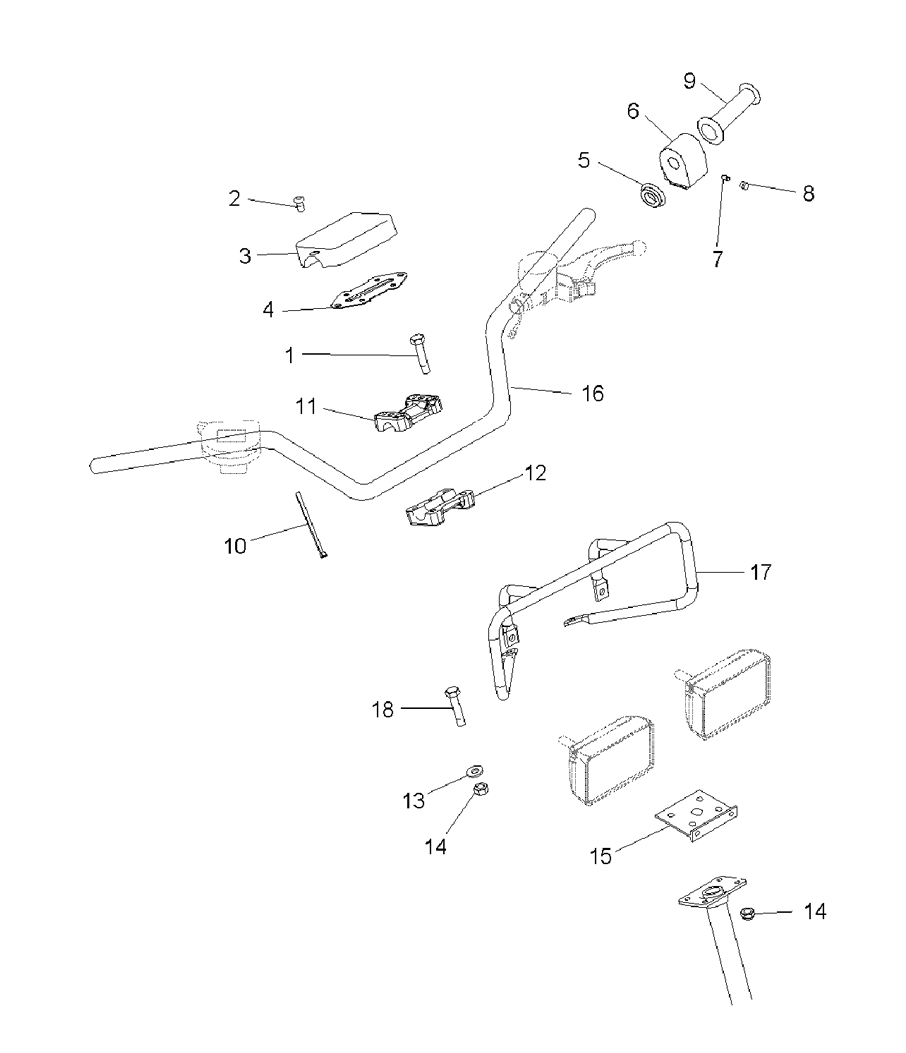

HANDLEBAR - CONTROL ASSY. для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17515189 SCREWSCREW
-
27518490 SCR-1/4-20X1/2,TFM HW-MSCR-1/4-20X1/2,TFM HW-M
-
35433993 PAD-HANDLE BARPAD-HANDLE BAR
-
45245051 MOUNT-HANDLEBAR PADMOUNT-HANDLEBAR PAD
-
55433903 SPACER-SWITCH, LEFT HAND,99SPACER-SWITCH, LEFT HAND,99
-
64011835 CNTRL-LEFT HAND,HI/LO/OFF,2P,SEPCNTRL-LEFT HAND,HI/LO/OFF,2P,SEP
-
77517625 SCREW,SETSCREW,SET
-
85432952 PLUG,HOLEPLUG,HOLE
-
95412900-070 GRIP-HANDLEBAR, MECHANICAL, BLACKGRIP-HANDLEBAR, MECHANICAL, BLACK
-
107080138 CABLE TIECABLE TIE
-
115631972 BLOCK-HANDLEBAR, PEG,89 IDBLOCK-HANDLEBAR, PEG,89 ID
-
125631973 BLOCK-HANDLEBAR, .89 IDBLOCK-HANDLEBAR, .89 ID
-
137558301 WASHER, FLATWASHER, FLAT
-
147542122 NUT-NYLOKNUT-NYLOK
-
155242867-067 BRKT,H/L,ELEC.SPEEDO, BLACK.BRKT,H/L,ELEC.SPEEDO, BLACK.
-
165244765-067 TUBE-HANDLEBAR, BLACK-TUBE-HANDLEBAR, BLACK-
-
171014833-067 HEADLIGHT GUARD, BLACKHEADLIGHT GUARD, BLACK
-
187512240 BOLTBOLT
