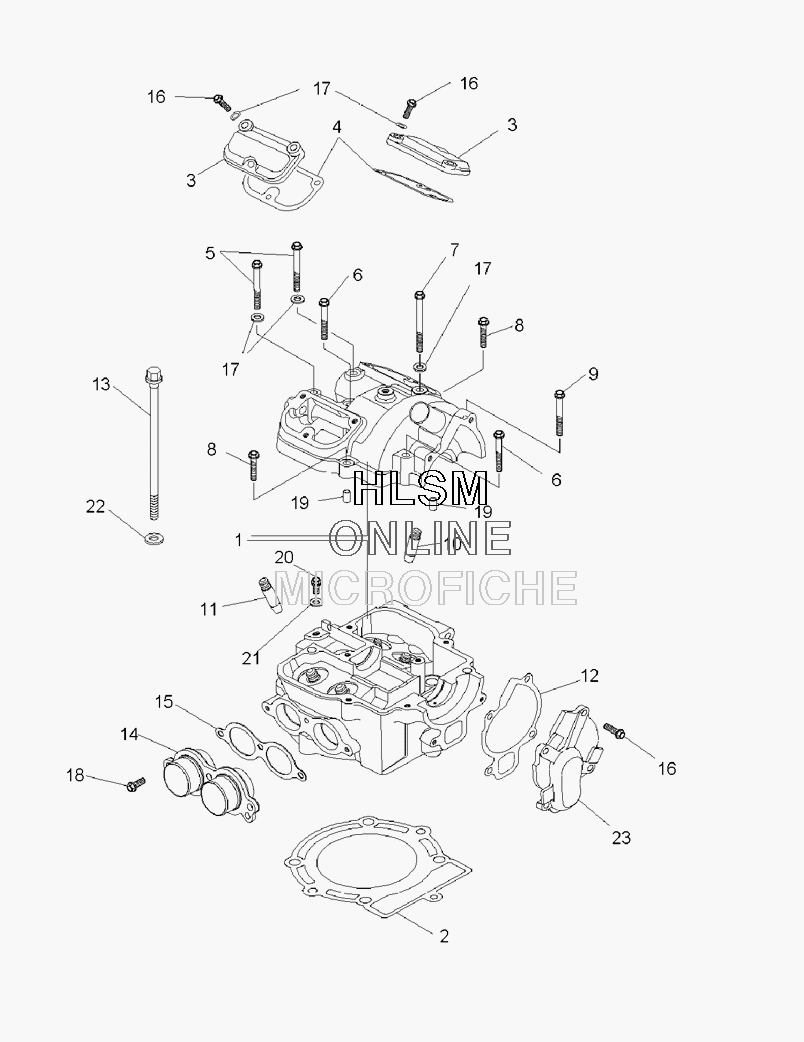

CYLINDER HEAD для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска
-
№АртикулНазвание
-
13021846 ASM-HEAD, CYLINDER 525ATVASM-HEAD, CYLINDER 525ATV
-
25813257 GASKET-CYL HEAD 89.3MM 450ATVGASKET-CYL HEAD 89.3MM 450ATV
-
35631974 COVER-VALVE SERVICE ACCESSCOVER-VALVE SERVICE ACCESS
-
45813175 GASKET-VALVE ACCESS COVERGASKET-VALVE ACCESS COVER
-
57518747 SCR-M6X55 HX/FL 10.9 8MM HEADSCR-M6X55 HX/FL 10.9 8MM HEAD
-
67518728 SCR-M6X45 HX/FL 8MM HEADSCR-M6X45 HX/FL 8MM HEAD
-
77518731 SCR-M6X75 HX/FL 8MM HEADSCR-M6X75 HX/FL 8MM HEAD
-
87518730 SCR-M6X30 HX/FL 8MM HEADSCR-M6X30 HX/FL 8MM HEAD
-
97518745 SCR-M6X35 HX/FL 8MM HEADSCR-M6X35 HX/FL 8MM HEAD
-
103021878 GUIDE-VALVE, INTAKE 525ATVGUIDE-VALVE, INTAKE 525ATV
-
113021879 GUIDE-VALVE, EXHAUST 525ATVGUIDE-VALVE, EXHAUST 525ATV
-
125813172 GASKET-WATERPUMP COVER, 0.8MMGASKET-WATERPUMP COVER, 0.8MM
-
137518740 SCR-M10X158 HX/FL CLYLEFT HANDEADSCR-M10X158 HX/FL CLYLEFT HANDEAD
-
141261762 FLANGE-EXHAUST, DOUBLE 525ATVFLANGE-EXHAUST, DOUBLE 525ATV
-
155813168 GASKET-EXHAUST FLANGE 525ATVGASKET-EXHAUST FLANGE 525ATV
-
167518723 SCR-M6X20 HX/FL 8MM HEADSCR-M6X20 HX/FL 8MM HEAD
-
177556415 WASHER-COPPER DIN7603 6X10X1MMWASHER-COPPER DIN7603 6X10X1MM
-
187518738 SCR-M6X16 HX/FL 8MM HEADSCR-M6X16 HX/FL 8MM HEAD
-
197661933 DOWEL-LOCATING 6X8X11.5MMDOWEL-LOCATING 6X8X11.5MM
-
207518739 SCR-VENT, CYL HEAD 525ATVSCR-VENT, CYL HEAD 525ATV
-
217556411 WASHER-COPPER SEALING 6X10X2MMWASHER-COPPER SEALING 6X10X2MM
-
227556412 WASHER-10.8X18.8X1.5MMWASHER-10.8X18.8X1.5MM
-
235135847 COVER-WATERPUMP, MACHCOVER-WATERPUMP, MACH
