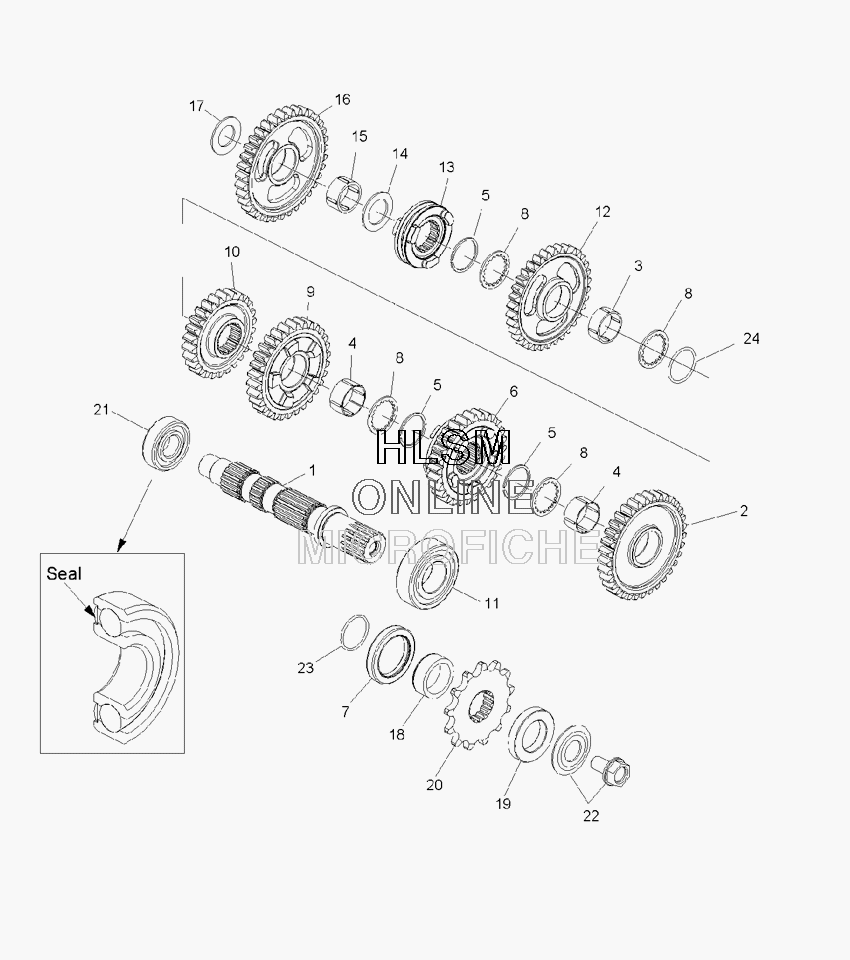

TRANSMISSION 2 для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска
-
№АртикулНазвание
-
16230376 SHAFT-COUNTER, TRANS, 525ATVSHAFT-COUNTER, TRANS, 525ATV
-
26230378 GEAR-2ND, COUNTERSHAFT, 33TGEAR-2ND, COUNTERSHAFT, 33T
-
33514598 BEARING-NEEDLE, 22X26X10, SPLITBEARING-NEEDLE, 22X26X10, SPLIT
-
43514597 BEARING-NEEDLE, 22X26X13, SPLITBEARING-NEEDLE, 22X26X13, SPLIT
-
57710611 RING-SNAP, 25MMRING-SNAP, 25MM
-
66230380 GEAR-4TH, COUNTERSHAFT, 28TGEAR-4TH, COUNTERSHAFT, 28T
-
75413246 SEAL-SHAFT, 32X45X7MM BSLNBRSEAL-SHAFT, 32X45X7MM BSLNBR
-
87556437 WASHER-THRUST, 22.6X30X1.5, 18TWASHER-THRUST, 22.6X30X1.5, 18T
-
96230379 GEAR-3RD, COUNTERSHAFT, 30TGEAR-3RD, COUNTERSHAFT, 30T
-
106230381 GEAR-5TH, COUNTERSHAFT, 26TGEAR-5TH, COUNTERSHAFT, 26T
-
113514573 BEARING-CYL ROLLER NJ205BEARING-CYL ROLLER NJ205
-
126230383 GEAR-REVERSE, COUNTERSHAFT, 34TGEAR-REVERSE, COUNTERSHAFT, 34T
-
136230382 DOG-ENGAGEMENT, 1ST/REVDOG-ENGAGEMENT, 1ST/REV
-
147556440 WASHER-THRUST, 20.2X31X1.5MMWASHER-THRUST, 20.2X31X1.5MM
-
153514600 BEARING-NEEDLE, 22X26X12MMBEARING-NEEDLE, 22X26X12MM
-
166230377 GEAR-1ST, COUNTERSHAFT, 35TGEAR-1ST, COUNTERSHAFT, 35T
-
177556441 WASHER-THRUST, 17.2X30X1.5MMWASHER-THRUST, 17.2X30X1.5MM
-
185135844 BUSHING-SPACER 12MM, CNTRSHAFTBUSHING-SPACER 12MM, CNTRSHAFT
-
197661941 COLLAR-SPACER, CS SPROCKETCOLLAR-SPACER, CS SPROCKET
-
203222160 SPROCKET-COUNTERSHAFT, 14T (STD)SPROCKET-COUNTERSHAFT, 14T (STD)
-
203222180 SPROCKET-14T, FRT, OUTLAW 450/525 (OPT)SPROCKET-14T, FRT, OUTLAW 450/525 (OPT)
-
203222181 SPROCKET-15T, FRT, OUTLAW 450/525 (OPT)SPROCKET-15T, FRT, OUTLAW 450/525 (OPT)
-
213514596 BEARING-BALL DPGRV 6203 RSH C3BEARING-BALL DPGRV 6203 RSH C3
-
222203497 KIT-CS SPROCKET BOLT AND WASHERKIT-CS SPROCKET BOLT AND WASHER
-
235413251 O-RING 25.12X1.78MM NBR70O-RING 25.12X1.78MM NBR70
-
245251733 SHIM-TRANSMISSION, 25X30X0.2MMSHIM-TRANSMISSION, 25X30X0.2MM
-
245251734 SHIM-TRANSMISSION, 25X30X0.3MMSHIM-TRANSMISSION, 25X30X0.3MM
