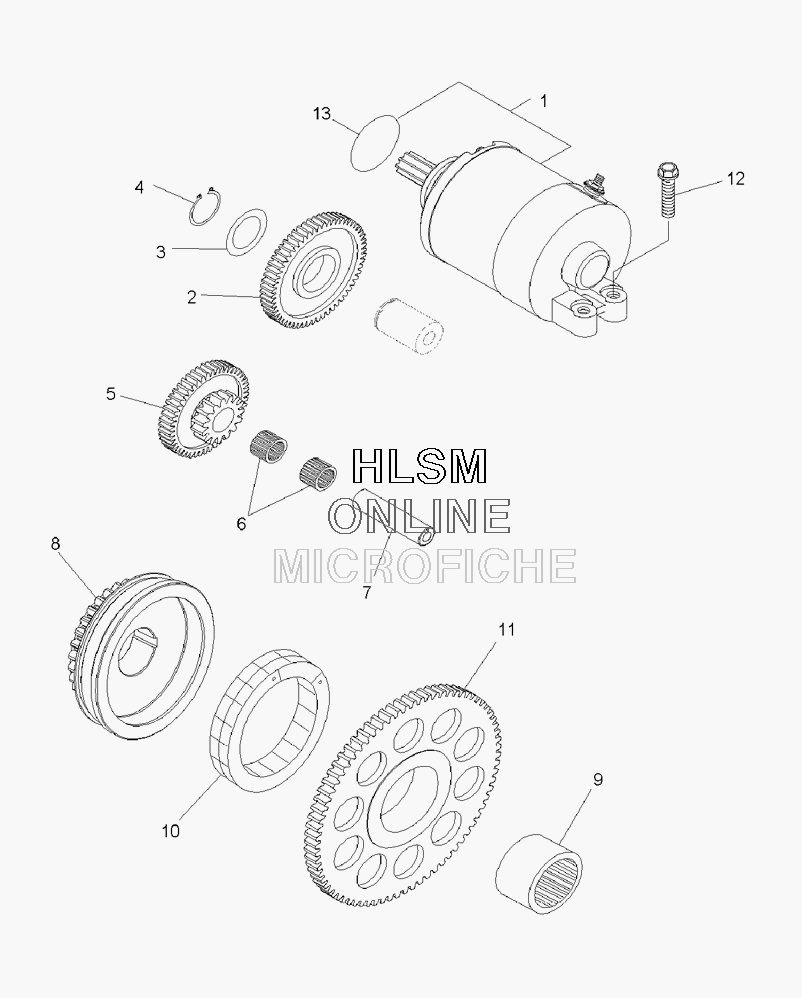

STARTING MOTOR для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска
-
№АртикулНазвание
-
14011801 ASM-STARTER MOTOR, 525ATVASM-STARTER MOTOR, 525ATV
-
26230363 GEAR-INTERMEDIATE STARTER 58TGEAR-INTERMEDIATE STARTER 58T
-
37556400 WASHER-STOP 17.2X25X1MMWASHER-STOP 17.2X25X1MM
-
47710596 RING-SNAP DIN0471 17X1MMRING-SNAP DIN0471 17X1MM
-
56230364 LIMITER-TORQUE, STARTERLIMITER-TORQUE, STARTER
-
63514582 BEARING-NEEDLE, 10X13X10MMBEARING-NEEDLE, 10X13X10MM
-
73021855 HUB-GEAR, STARTER INTERMEDIATEHUB-GEAR, STARTER INTERMEDIATE
-
86230361 GEAR-PRIMARY 31T 525ATVGEAR-PRIMARY 31T 525ATV
-
93514579 BEARING-NEEDLE HK3016BBEARING-NEEDLE HK3016B
-
106230365 CLUTCH-1WAY STARTERCLUTCH-1WAY STARTER
-
116230360 GEAR-FREEWHEEL, 1WAY CLUTCHGEAR-FREEWHEEL, 1WAY CLUTCH
-
127518723 SCR-M6X20 HX/FL 8MM HEADSCR-M6X20 HX/FL 8MM HEAD
-
135413337 O-RING-32.0X2.0MM NBR70O-RING-32.0X2.0MM NBR70
