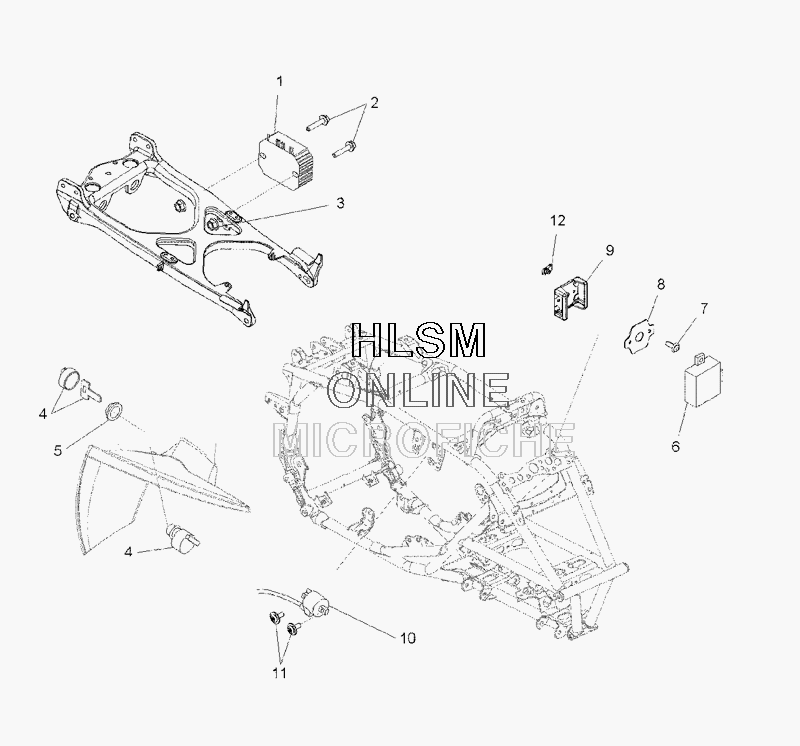

REGULATOR - CDI - COIL для Polaris OUTLAW 450 S (A09GJ45AA) - 2009 года выпуска
-
№АртикулНазвание
-
14010654 RECTIFIER-REGULATOR, KOKUSANRECTIFIER-REGULATOR, KOKUSAN
-
27518530 BOLT-M6X1.0X30, HXHD, FLG, BLACKBOLT-M6X1.0X30, HXHD, FLG, BLACK
-
37547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
-
44012163 SWITCH-IGNITION, MT SLV (INCL. 5, KEY, KEY COVER)SWITCH-IGNITION, MT SLV (INCL. 5, KEY, KEY COVER)
-
55433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
64011668 CONTROLLER-IGN, KOKCONTROLLER-IGN, KOK
-
77519066 SCREWSCREW
-
85250906 PLATE-CDI MOUNTPLATE-CDI MOUNT
-
95413234 MOUNT-CDIMOUNT-CDI
-
104012392 COIL-IGNITION, KOK, 525 ATVCOIL-IGNITION, KOK, 525 ATV
-
117519069 SCREWSCREW
-
127081305 CLIP-U SPEED NUTCLIP-U SPEED NUT
