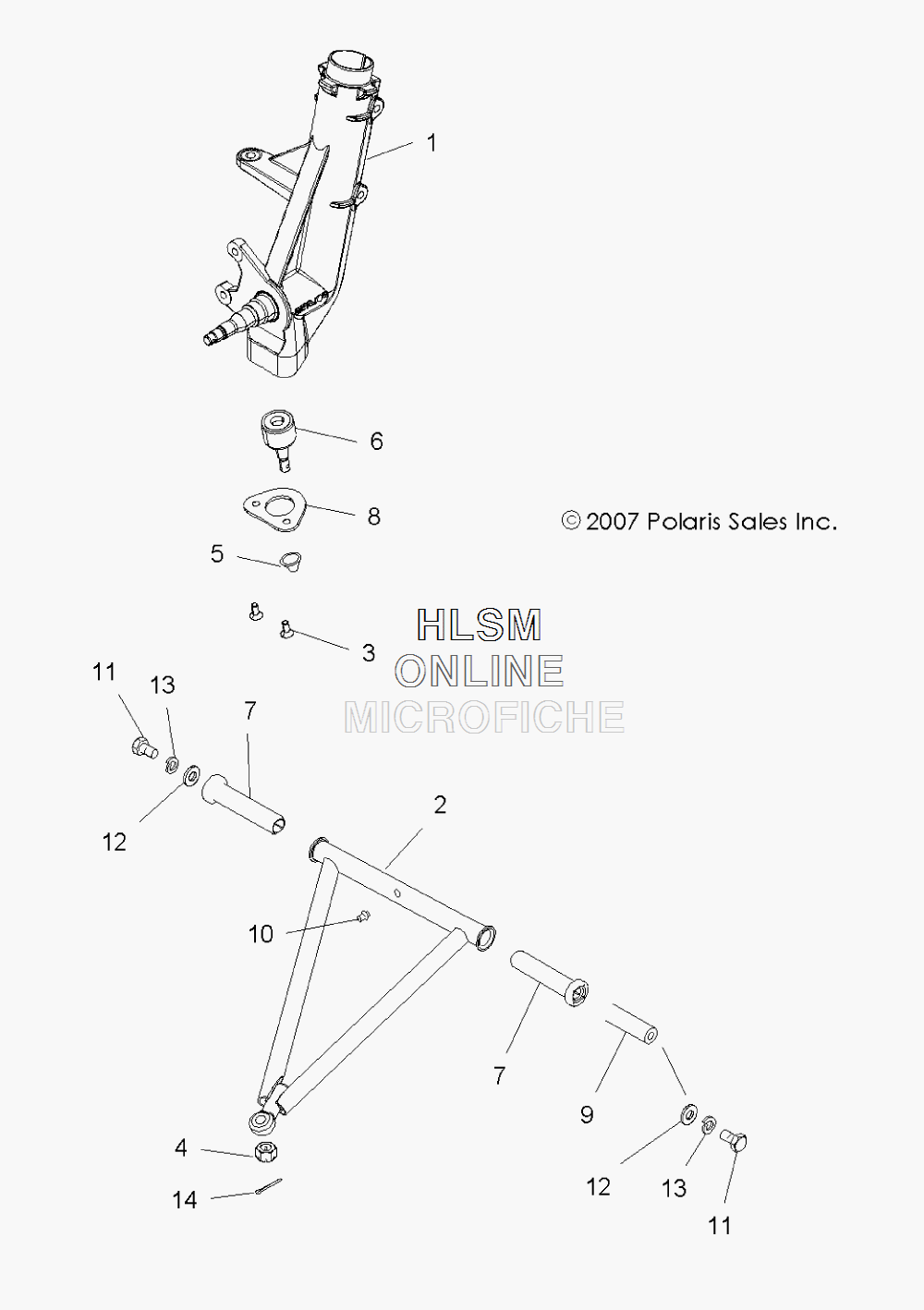

A-ARMS- MID DRIVE для Polaris SCRAMBLER 2X4 INTL (A09BA50FA) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
15135135 SUPPORT, STRUT/SPINDLE, LEFT HANDSUPPORT, STRUT/SPINDLE, LEFT HAND
-
15135136 SUPPORT, STRUT/SPINDLE, RIGHT HANDSUPPORT, STRUT/SPINDLE, RIGHT HAND
-
22202276 KIT, A-FRAME, LEFT HAND (INCL. 7,9-13)KIT, A-FRAME, LEFT HAND (INCL. 7,9-13)
-
22202277 KIT, A-FRAME, RIGHT HAND (INCL. 7,9-13)KIT, A-FRAME, RIGHT HAND (INCL. 7,9-13)
-
37512284 BOLT, SOCKETBOLT, SOCKET
-
47542438 NUT, CASTLENUT, CASTLE
-
55412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
67061158 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
75434551 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
85211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
95133806 SHAFT, A-ARMSHAFT, A-ARM
-
107080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117512492 SCREWSCREW
-
127555832 WASHERWASHER
-
137552603 WASHER, LOCKWASHER, LOCK
-
147661203 PIN, COTTERPIN, COTTER
