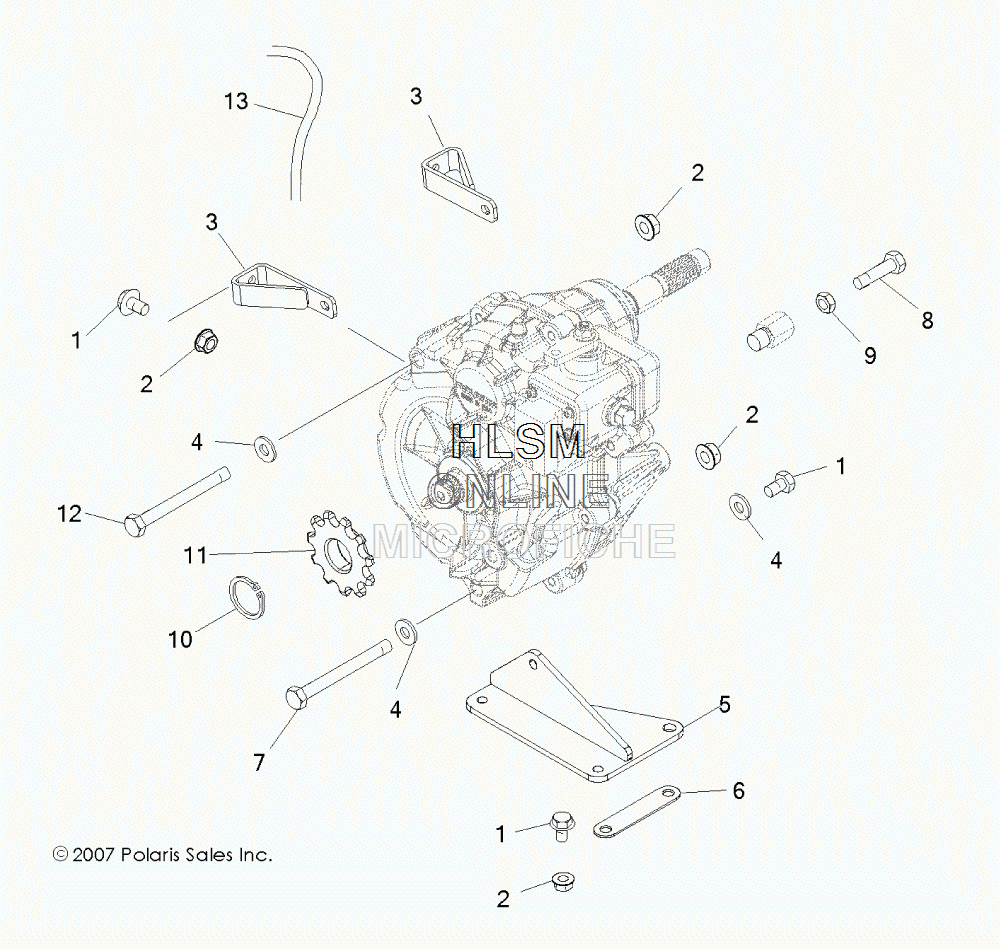

GEARCASE - MAIN - MOUNTING для Polaris SCRAMBLER 2X4 INTL (A09BA50FA) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
17518364 BOLT, FLANGEBOLT, FLANGE
-
27547180 NUT, FLANGEDNUT, FLANGED
-
31014772 MOUNT, TRANSMISSIONMOUNT, TRANSMISSION
-
47555806 WASHER, FLATWASHER, FLAT
-
51012886-067 MOUNT, TRANSMISSION (BLACK)MOUNT, TRANSMISSION (BLACK)
-
65243296 SPACERSPACER
-
77517646 SCREWSCREW
-
87517631 SCREWSCREW
-
97542440 NUTNUT
-
107710434 RING, SNAPRING, SNAP
-
113221044 SPROCKET, 12TSPROCKET, 12T
-
127517640 SCREWSCREW
-
138450003-1525 LINE, FUELLINE, FUEL
