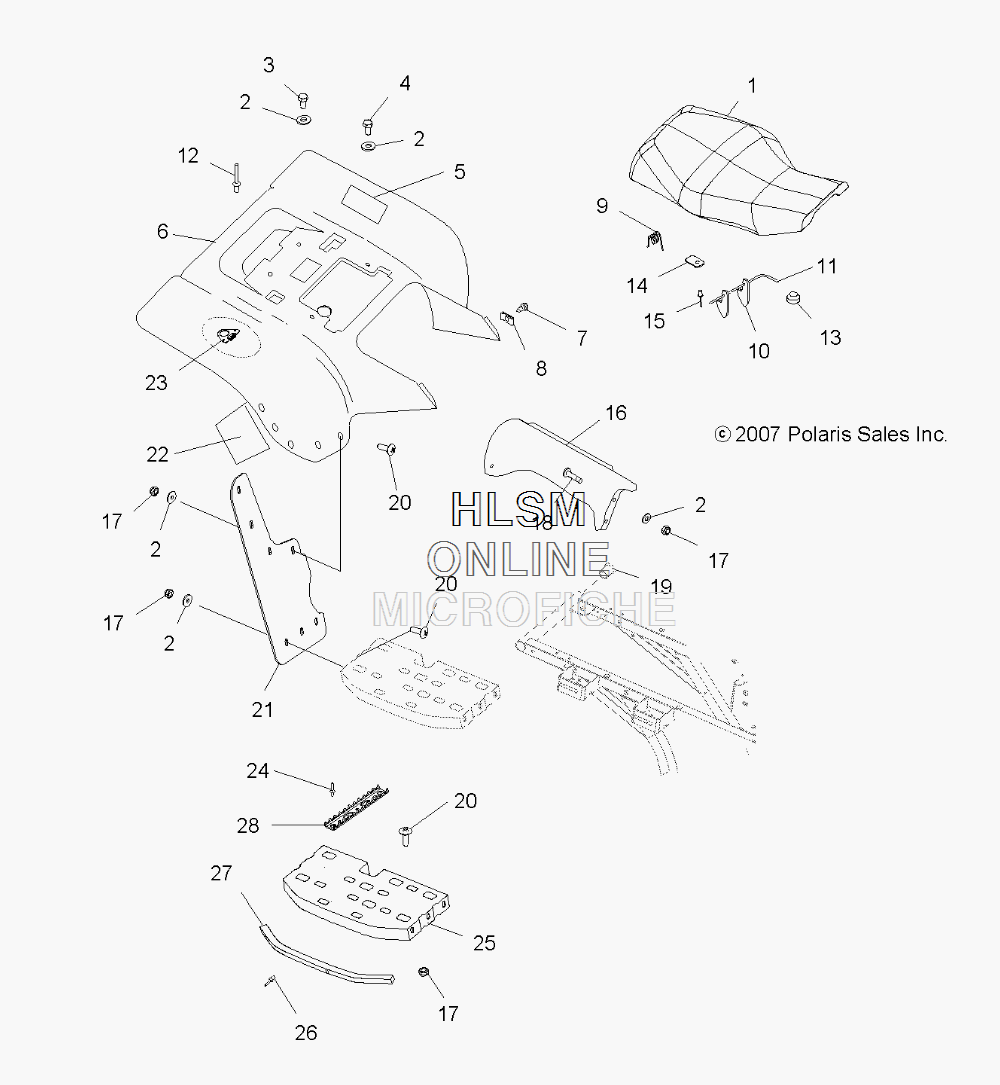

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 2X4 INTL (A09BA50FA) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
12683329-070 ASM., SEAT (BLACK W/WHITE 'POLARIS') (INCL. 9-11,13-15)ASM., SEAT (BLACK W/WHITE 'POLARIS') (INCL. 9-11,13-15)
-
12684094 ASM., COVER, SEAT (BLACK)ASM., COVER, SEAT (BLACK)
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
55810991 FOIL, SMALLFOIL, SMALL
-
65430007-133 CAB, REAR (BRIGHT WHITE)CAB, REAR (BRIGHT WHITE)
-
77517916 SCREWSCREW
-
87670057 NUT, SPEEDNUT, SPEED
-
97041607 SPRING, LATCH, LIGHTSPRING, LATCH, LIGHT
-
101040412 LATCH, SEATLATCH, SEAT
-
115411392 CAP, SEAT LATCHCAP, SEAT LATCH
-
127621472 RIVETRIVET
-
135412067 BUMPER, RUBBERBUMPER, RUBBER
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
157621403 RIVETRIVET
-
162632280 ASM., SHIELD, MUFFLER W/FOILASM., SHIELD, MUFFLER W/FOIL
-
165811230 FOILFOIL
-
177542122 NUT, NYLOKNUT, NYLOK
-
187517264 SCREWSCREW
-
195432831 PLUG, END CAP, RIBBEDPLUG, END CAP, RIBBED
-
207512282 BOLTBOLT
-
215812134 MUDFLAP, REAR, LEFT HANDMUDFLAP, REAR, LEFT HAND
-
225812543 MUDFLAP, REAR, RIGHT HANDMUDFLAP, REAR, RIGHT HAND
-
225810957 FOILFOIL
-
235220880 BRACKET, REAR HOLDDOWNBRACKET, REAR HOLDDOWN
-
247621472 RIVETRIVET
-
251014653-458 FOOTPAD (MATTE BLACK)FOOTPAD (MATTE BLACK)
-
267661825 RIVETRIVET
-
275431484 TRIM, FOOTRESTTRIM, FOOTREST
-
285242525-067 BRACKET, HEEL CLEAT (BLACK)BRACKET, HEEL CLEAT (BLACK)
