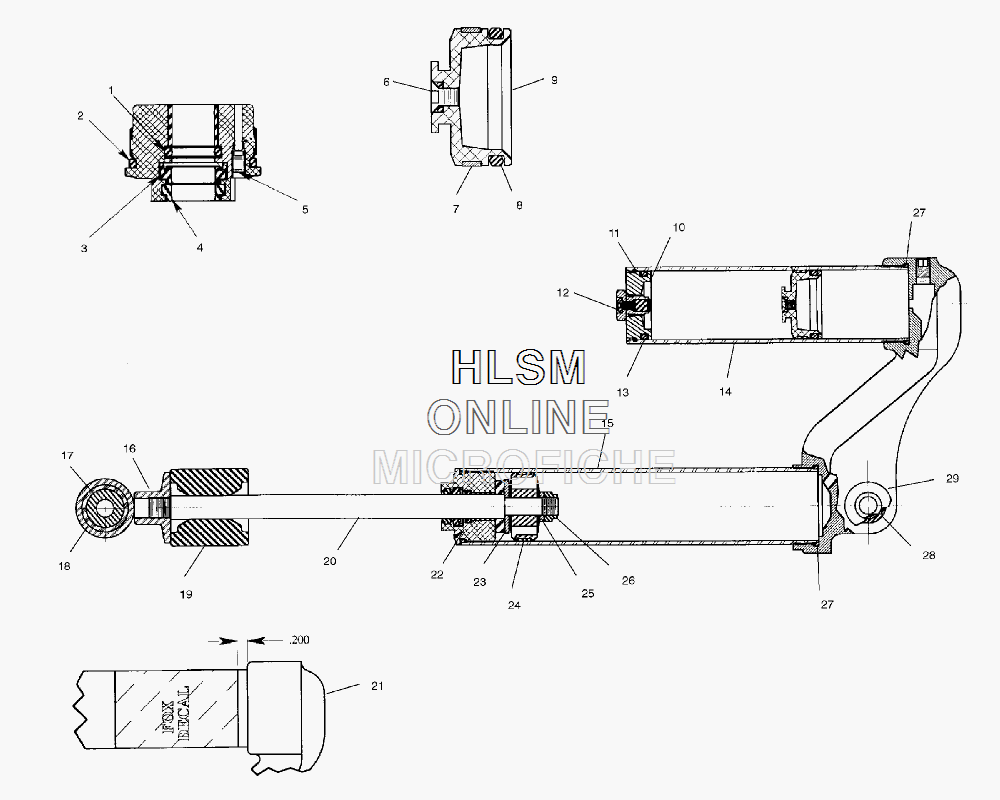

SUSPENSION - REAR SHOCK для Polaris SCRAMBLER 2X4 INTL (A09BA50FA) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
7041867 SHOCK, MOMO, GASSHOCK, MOMO, GAS
-
11500021 O-RING, INNERO-RING, INNER
-
21500020 O-RINGO-RING
-
31500266 U-CUPU-CUP
-
41500527 SEAL, WIPERSEAL, WIPER
-
51500287 SCREWSCREW
-
61500018 SCREWSCREW
-
61500023 O-RING, OUTERO-RING, OUTER
-
71500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
81500003 O-RING, ENDCAPO-RING, ENDCAP
-
91500011 PISTONPISTON
-
101500099 CAP, RESERVOIR ASM. (INCL. 11,12,13)CAP, RESERVOIR ASM. (INCL. 11,12,13)
-
111500097 RING, RETAININGRING, RETAINING
-
121500019 SCREWSCREW
-
121500022 O-RING, DRUM, OUTERO-RING, DRUM, OUTER
-
121500014 ASM., AIR VALVEASM., AIR VALVE
-
131500003 O-RINGO-RING
-
141500286 RESERVOIRRESERVOIR
-
151500283 BODYBODY
-
161500013 ASM., EYELETASM., EYELET
-
171500102 SLEEVESLEEVE
-
181500103 BUSHING, EYELETBUSHING, EYELET
-
195410987 BUMPER, REAR, COMPRESSBUMPER, REAR, COMPRESS
-
201500284 SHAFTSHAFT
-
211500282 CAP, BODYCAP, BODY
-
221500285 BEARINGBEARING
-
231500017 PLATE, TOP OUTPLATE, TOP OUT
-
241500002 BEARING, EXTERNALBEARING, EXTERNAL
-
251500015 BUSHING, BACKUPBUSHING, BACKUP
-
261500016 NUT, LOCKNUT, LOCK
-
271500004 O-RING, BODYO-RING, BODY
-
285020657 SLEEVESLEEVE
-
291500104 BUSHING, EYELETBUSHING, EYELET
