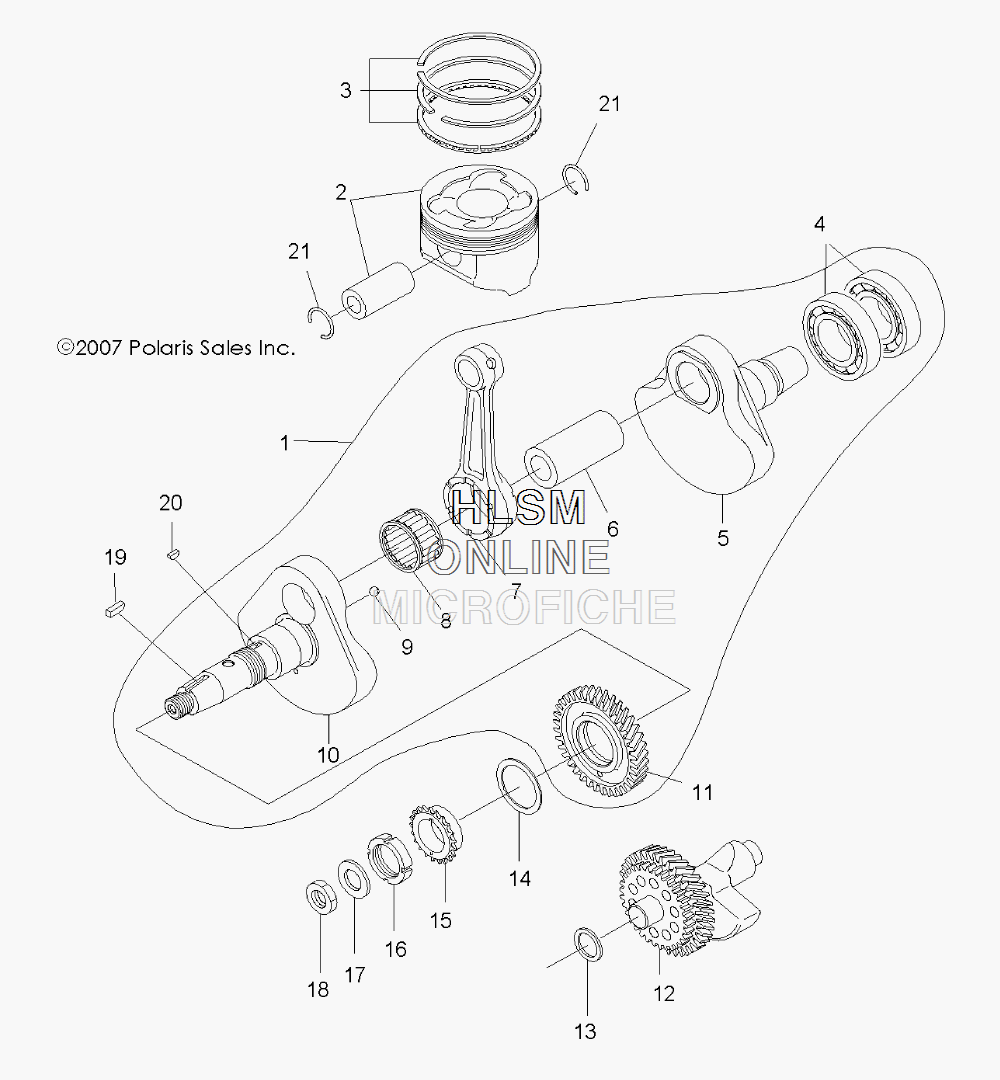

CRANKSHAFT W/ CYLINDER для Polaris SCRAMBLER 2X4 INTL (A09BA50FA) (WHITE) - 2009 года выпуска
-
№АртикулНазвание
-
13089570 ASM., CRANKSHAFT (INCL. 4-11)ASM., CRANKSHAFT (INCL. 4-11)
-
23087221 SET, PISTON, STANDARD (INCL. 21 AND PIN)SET, PISTON, STANDARD (INCL. 21 AND PIN)
-
23087222 SET, PISTON, .010 INCH/.25 MM O/S (INCL. 21 AND PIN)SET, PISTON, .010 INCH/.25 MM O/S (INCL. 21 AND PIN)
-
23087223 SET, PISTON, .020 INCH/.50 MM O/S (INCL. 21 AND PIN)SET, PISTON, .020 INCH/.50 MM O/S (INCL. 21 AND PIN)
-
33087224 SET, PISTON, RING, STANDARD (INCL. TOP, MIDDLE, BOTTOM RINGS)SET, PISTON, RING, STANDARD (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
33087225 SET, PISTON, RING, .010 INCH/.25 MM O/S (INCL. TOP, MIDDLE, BOTTOM RINGS)SET, PISTON, RING, .010 INCH/.25 MM O/S (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
33087226 SET, PISTON, RING, .020 INCH/.50 MM O/S (INCL. TOP, MIDDLE, BOTTOM RINGS)SET, PISTON, RING, .020 INCH/.50 MM O/S (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
43085815 BEARING, BALLBEARING, BALL
-
53085812 CRANKSHAFT 2CRANKSHAFT 2
-
63087090 PIN, CRANKPIN, CRANK
-
73085813 ROD, CONNECTINGROD, CONNECTING
-
83085343 BEARING, END, LARGEBEARING, END, LARGE
-
93085024 BALL, STEELBALL, STEEL
-
103089678 CRANKSHAFT 1CRANKSHAFT 1
-
113089245 GEAR 1, BALANCERGEAR 1, BALANCER
-
123090031 SHAFT, BALANCERSHAFT, BALANCER
-
133084895 SPACER, 0.8SPACER, 0.8
-
133084896 SPACER, 1.0SPACER, 1.0
-
133084897 SPACER, 1.2SPACER, 1.2
-
143240088 SPACER, 0.6SPACER, 0.6
-
143084892 SPACER, 0.8SPACER, 0.8
-
143084893 SPACER, 1.0SPACER, 1.0
-
143084894 SPACER, 1.2SPACER, 1.2
-
153084882 SPROCKET 1SPROCKET 1
-
163085528 NUT, SLITNUT, SLIT
-
173086767 WASHERWASHER
-
183083905 NUT, LOCKNUT, LOCK
-
193081447 KEYKEY
-
203240168 KEY, WOODRUFFKEY, WOODRUFF
-
213085534 CLIPCLIP
