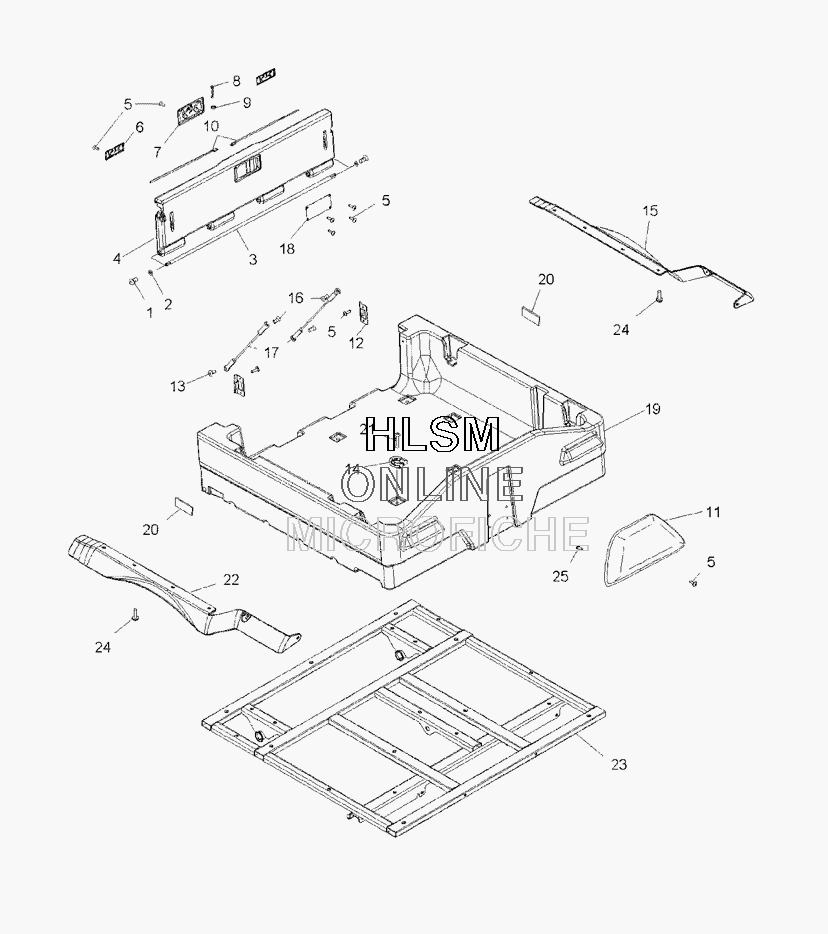

BED - REAR для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27558221 WASHERWASHER
-
35132358 ROD,HINGEROD,HINGE
-
45433388 TAILGATE,PLASTICTAILGATE,PLASTIC
-
57517561 SCREWSCREW
-
65433656 LATCH,FLSHBLT,TLGATE, BLACKLATCH,FLSHBLT,TLGATE, BLACK
-
75433655 LATCH,PADDLE,T-GATE, BLACKLATCH,PADDLE,T-GATE, BLACK
-
87661644 PIN,HITCHPIN,HITCH
-
97556143 WSHR,RUBBER W/METAL BACKWSHR,RUBBER W/METAL BACK
-
105132373 SHFT,TLGATE LTCH,5/16,ZINCSHFT,TLGATE LTCH,5/16,ZINC
-
112682522-070 BACKREST, BLACK,ASM. (INCL. COVER)BACKREST, BLACK,ASM. (INCL. COVER)
-
112681664-070 COVERING,BACKREST, BLACKCOVERING,BACKREST, BLACK
-
125243304 BRKT-BOX LATCHBRKT-BOX LATCH
-
137517938 SCREW-1/4-20X2SCREW-1/4-20X2
-
147081101 RING-TIE DOWNRING-TIE DOWN
-
155437873-070 BRACKETBRACKET
-
167517742 SCREW1/4-20X3/4PA PN,LK,G2-YSCREW1/4-20X3/4PA PN,LK,G2-Y
-
177080881 CABLE-TAILGATECABLE-TAILGATE
-
185244068-067 COVER-TAILGATE, BLACKCOVER-TAILGATE, BLACK
-
195437912-070 BOX (INC WARNING DECALS)BOX (INC WARNING DECALS)
-
207079925 DECAL-REFLECT.2.88,REDDECAL-REFLECT.2.88,RED
-
217517686 SCREWSCREW
-
225437874-070 BRACKETBRACKET
-
231016881-067 PLATEPLATE
-
2475190474 SCREWSCREW
