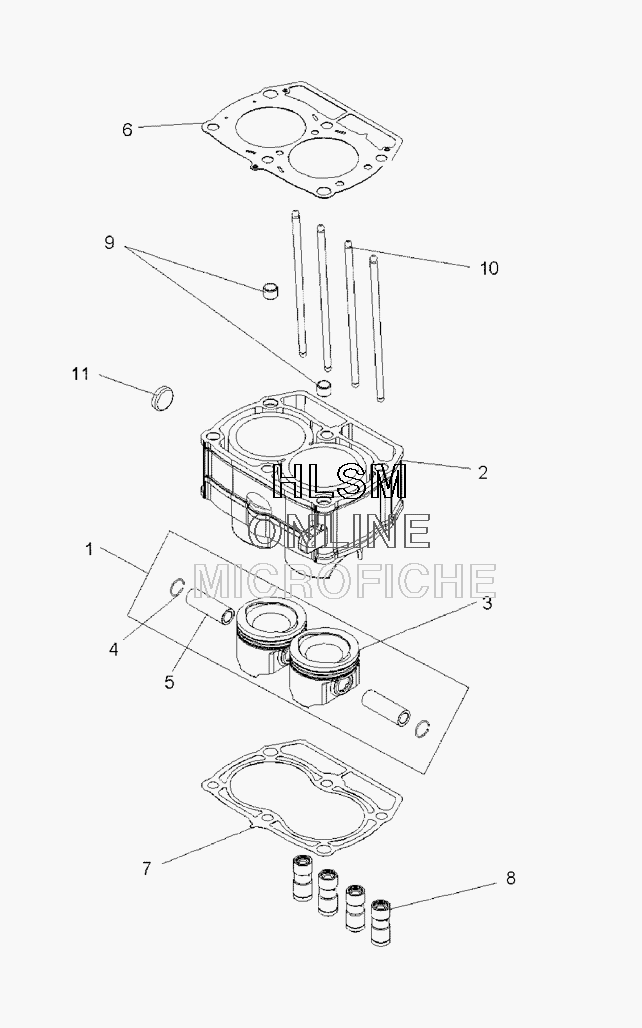

PISTON AND CYLINDER для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12202917 KIT-PISTON (INCL. 3-5)KIT-PISTON (INCL. 3-5)
-
22203911 KIT-CYLINDER,ATV,5136469 (INCL. CYLINDER 9,11)KIT-CYLINDER,ATV,5136469 (INCL. CYLINDER 9,11)
-
32202920 KIT-PISTON RINGS 80MM (INCL. 1TOP, MIDDLE, BOTTOM, RING)KIT-PISTON RINGS 80MM (INCL. 1TOP, MIDDLE, BOTTOM, RING)
-
43021510 CIRCLIP-PISTONCIRCLIP-PISTON
-
65247359 GASKET-HEADGASKET-HEAD
-
75247360 GASKET-BASEGASKET-BASE
-
85134152 LIFTER-VALVE,HYDRAULIC-LIFTER-VALVE,HYDRAULIC-
-
97661175 DOWEL-HOL,M16X12,0600089DOWEL-HOL,M16X12,0600089
-
105132402 PUSHRODPUSHROD
-
117051534 PLUG-EXPANSION 1 1/8''PLUG-EXPANSION 1 1/8''
