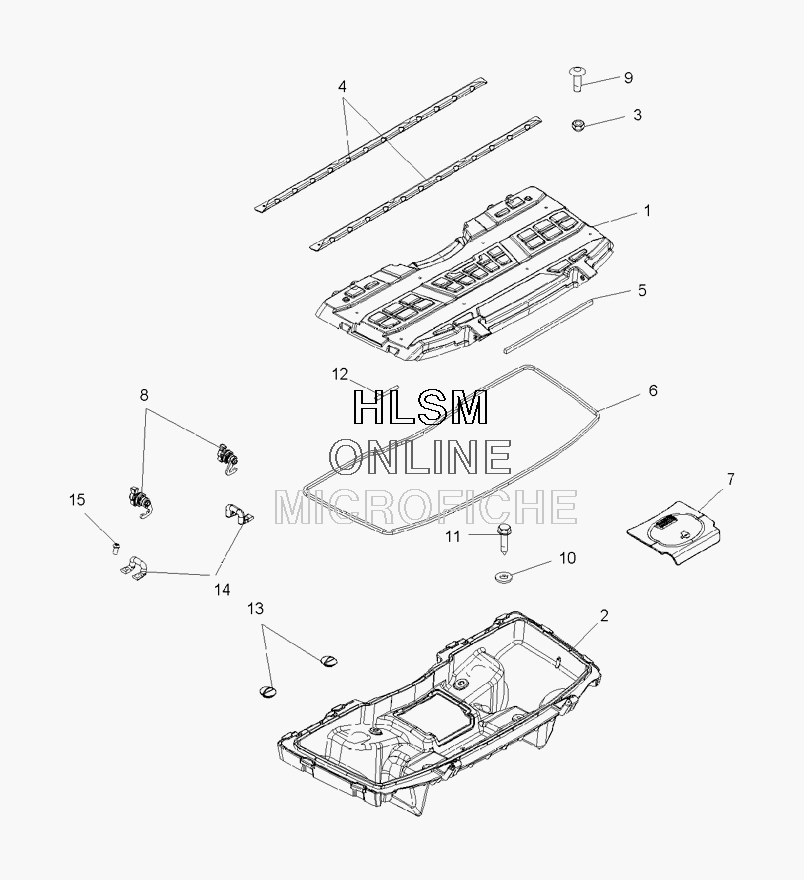

STORAGE BOX - FRONT для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12633157 COVER ASM,FRONT,SERVICE- (INCL. 5 AND WARNING DECALS)COVER ASM,FRONT,SERVICE- (INCL. 5 AND WARNING DECALS)
-
22633377 KIT-ASM-LOWER BOX,FRONT (INCL. 6,7,8,14,15)KIT-ASM-LOWER BOX,FRONT (INCL. 6,7,8,14,15)
-
37542122 NUT-NYLOKNUT-NYLOK
-
45247653-418 CHANNEL-LID,FRONT,FLTBLACKWRKLCHANNEL-LID,FRONT,FLTBLACKWRKL
-
55521706 SEAL-LID/BUMPERSEAL-LID/BUMPER
-
65521693 SEALSEAL
-
75413189 COVER-RADIATOR, FRONTCOVER-RADIATOR, FRONT
-
87081421 LATCH-1/4 TURN,DETENT, LEFT HANDLATCH-1/4 TURN,DETENT, LEFT HAND
-
87081422 LATCH-1/4 TURN,DETENT, RIGHT HANDLATCH-1/4 TURN,DETENT, RIGHT HAND
-
97518427 SCR-1/4-20X1.25 TR/TX-M-GRIGHT HAND5SCR-1/4-20X1.25 TR/TX-M-GRIGHT HAND5
-
107556175 WASHER-.325X1.20X.090,FL-YWASHER-.325X1.20X.090,FL-Y
-
117517208 SCREWSCREW
-
125134576 PIN-HINGE,FRONTPIN-HINGE,FRONT
-
135412981 PLUG-COMPARTMENTPLUG-COMPARTMENT
-
145251765 CLIPSCLIPS
-
157512076 SCREWSCREW
