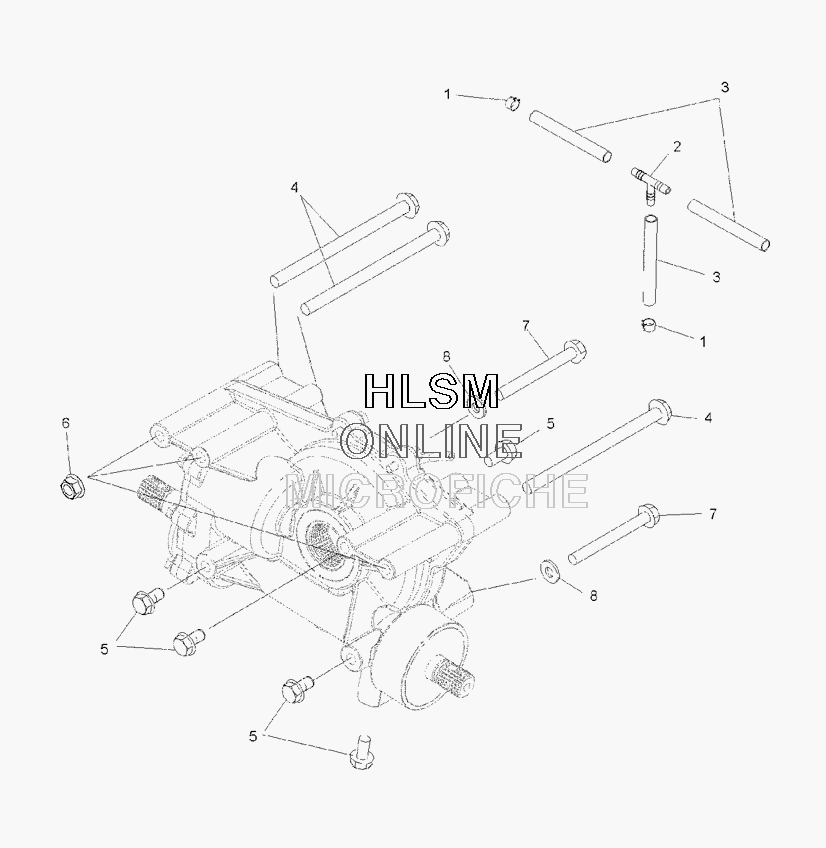

GEARCASE MID - MOUNTING для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
17080307 CLAMP,HOSECLAMP,HOSE
-
27052075 FITTING, TEEFITTING, TEE
-
38450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
47518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
57517632 SCREWSCREW
-
67547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
77515502 BOLTBOLT
-
87555806 WASHER,FLATWASHER,FLAT
