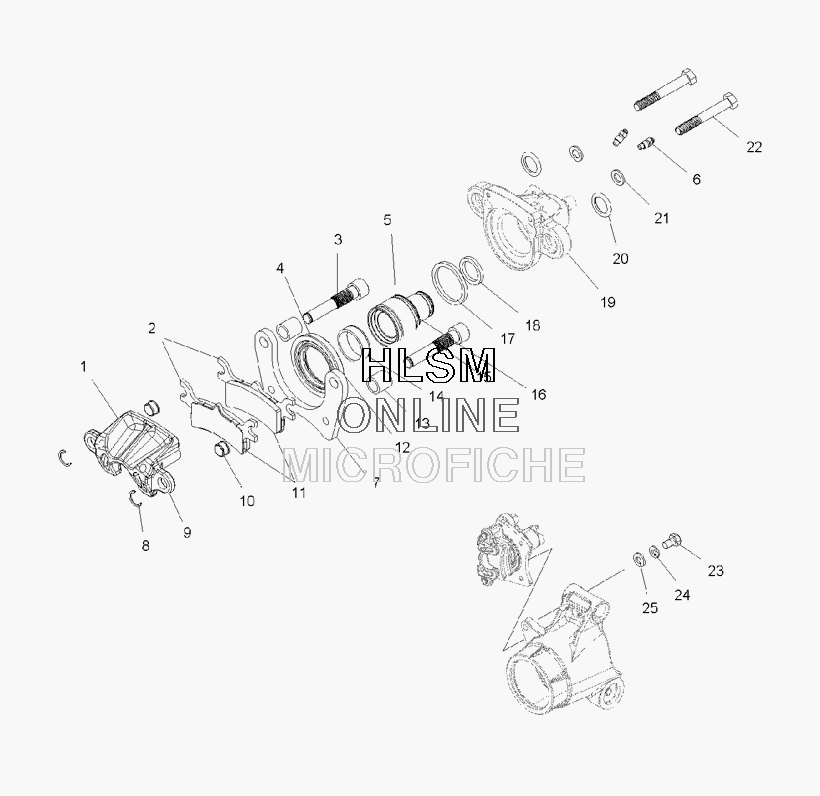

BRAKE - REAR CALIPER для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
-1911075 CALIPER-BRAKE,DH4P,3/8 MOUNT (INCL. 1-22) (MID RH, REAR RH)CALIPER-BRAKE,DH4P,3/8 MOUNT (INCL. 1-22) (MID RH, REAR RH)
-
11911478 CALIPER (INCL. 1-22) (REAR LH)CALIPER (INCL. 1-22) (REAR LH)
-
12201873 ANVIL BODY-KIT (INCL. 8,9,10,21,22)ANVIL BODY-KIT (INCL. 8,9,10,21,22)
-
22202414 KIT-BRAKE PAD ASM,DH4P (INCL. 11)KIT-BRAKE PAD ASM,DH4P (INCL. 11)
-
32201870 SLIDE BOLT-KIT,DH4P (INCL. 8,10,13,15,20)SLIDE BOLT-KIT,DH4P (INCL. 8,10,13,15,20)
-
42201872 SEAL,KIT,DH4P (INCL. 12,17,18)SEAL,KIT,DH4P (INCL. 12,17,18)
-
52201869 PISTON/SEAL-KIT,DH4P (INCL. 12,14,16,17,18)PISTON/SEAL-KIT,DH4P (INCL. 12,14,16,17,18)
-
61910538 FITTING-BLEED COMPACTFITTING-BLEED COMPACT
-
237512457 BOLTBOLT
-
247552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
257556188 WASHER-FLEFT HAND390X.750X.065-YWASHER-FLEFT HAND390X.750X.065-Y
