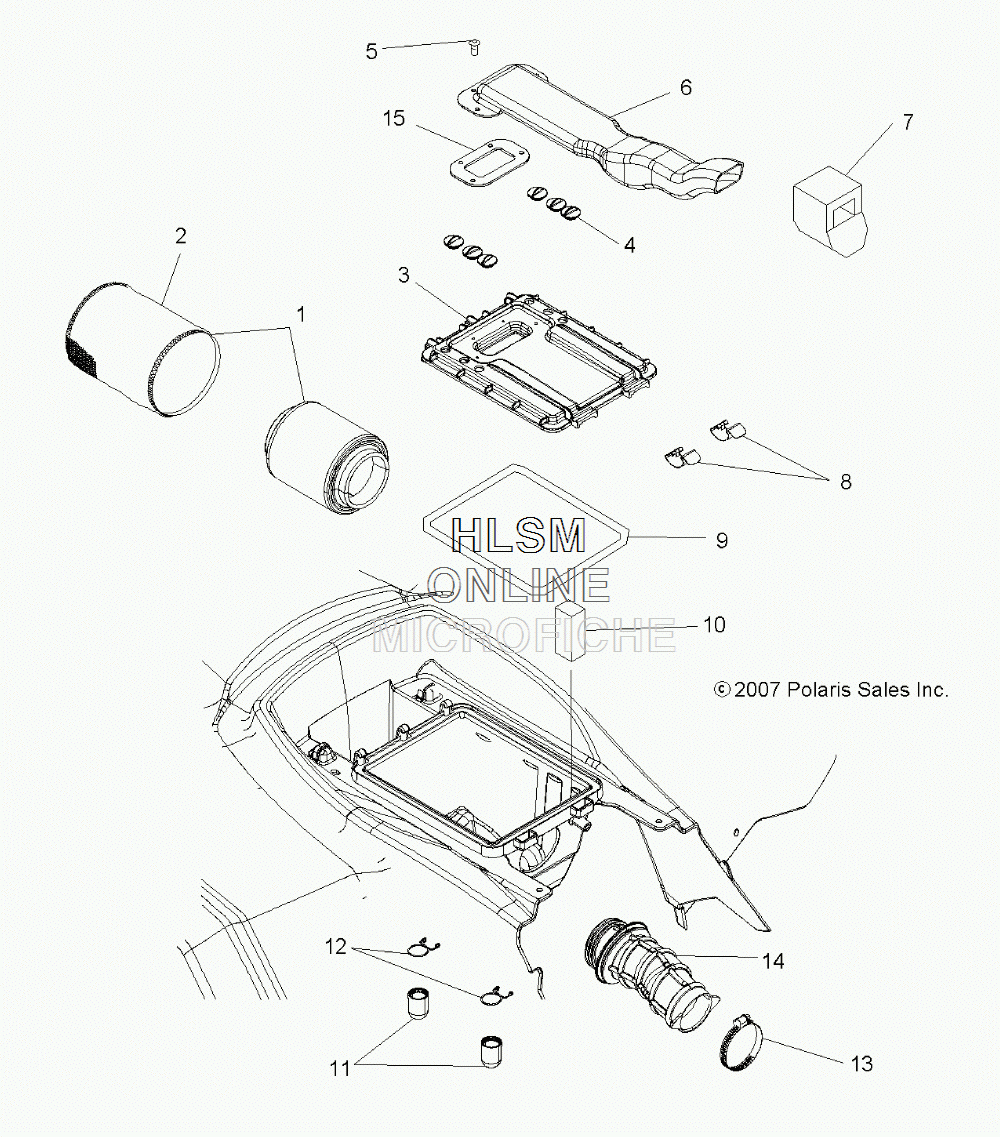

AIR INTAKE SYSTEM для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
11253355 ASM., FILTER, AIRBOX (INCL. 2)ASM., FILTER, AIRBOX (INCL. 2)
-
25811660 FILTER, SLEEVE, PRECLEANERFILTER, SLEEVE, PRECLEANER
-
31240335 ASM., COVER, AIRBOX (INCL. 4)ASM., COVER, AIRBOX (INCL. 4)
-
45412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
57517317 SCREWSCREW
-
65436160 DUCT, INTAKEDUCT, INTAKE
-
75813014 FOAM, INTAKEFOAM, INTAKE
-
85250105 CLIPCLIP
-
95521718 SEAL, COVERSEAL, COVER
-
95521718 SEAL, COVERSEAL, COVER
-
105812910 FILTER, CRANKCASEFILTER, CRANKCASE
-
115413123 CAP, DRAINCAP, DRAIN
-
127080533 CLAMPCLAMP
-
137080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
145412822 BOOT, AIRBOXBOOT, AIRBOX
-
155411422 GASKET, INTAKEGASKET, INTAKE
