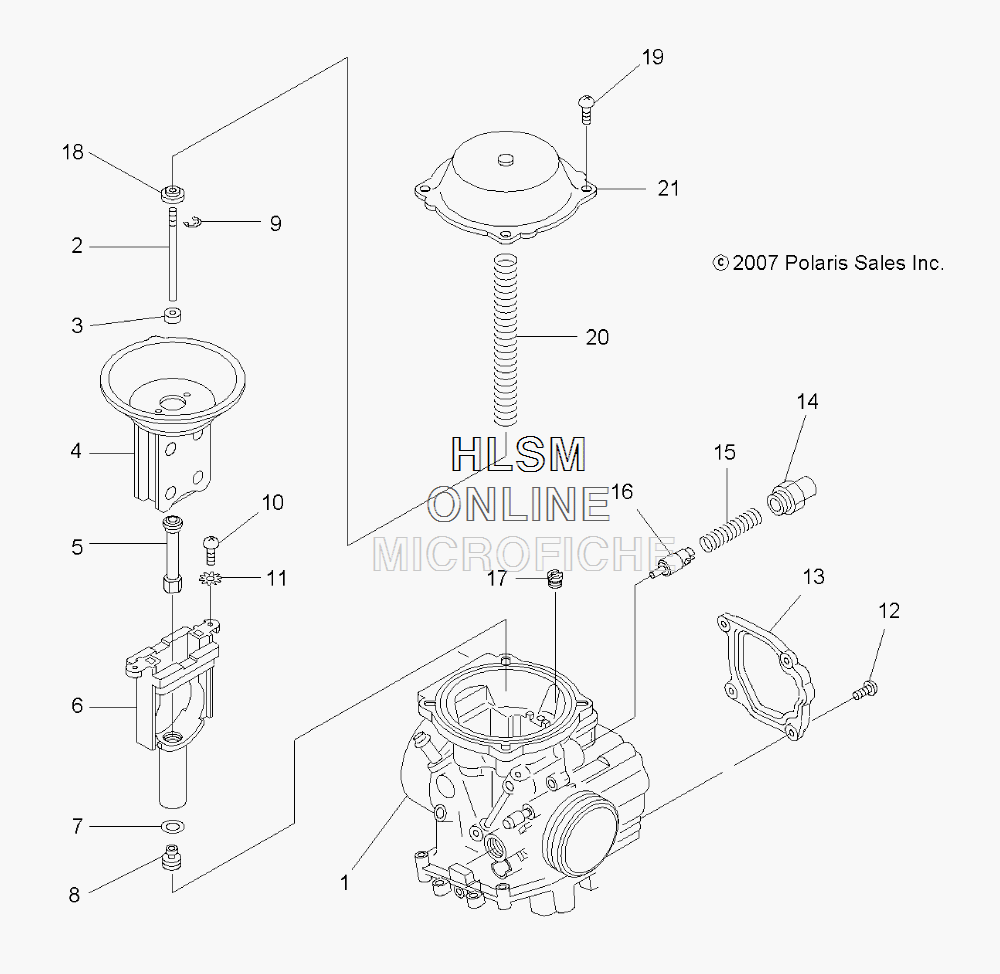

CARBURETOR ASSY - UPPER для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
13131637 ASM., CARBURETOR (INCL. 1-21)ASM., CARBURETOR (INCL. 1-21)
-
23131638 NEEDLE, JET, J8-4HC57NEEDLE, JET, J8-4HC57
-
33130752 RINGRING
-
43130506 DIAPHRAGMDIAPHRAGM
-
53131639 JET, NEEDLEJET, NEEDLE
-
63130504 ASM., JET BLOCKASM., JET BLOCK
-
73130014 WASHERWASHER
-
83130527 JET, MAIN, #140JET, MAIN, #140
-
93130508 E-RINGE-RING
-
103130541 SCREWSCREW
-
113130540 WASHER, SPRINGWASHER, SPRING
-
123130535 SCREWSCREW
-
133130511 COVERCOVER
-
143130199 HOLDER, GUIDEHOLDER, GUIDE
-
153130538 SPRINGSPRING
-
163131228 PLUNGERPLUNGER
-
173131623 JET, AIR, #140JET, AIR, #140
-
183130507 RINGRING
-
193130924 SCREWSCREW
-
203131129 SPRINGSPRING
-
213130503 COVERCOVER
