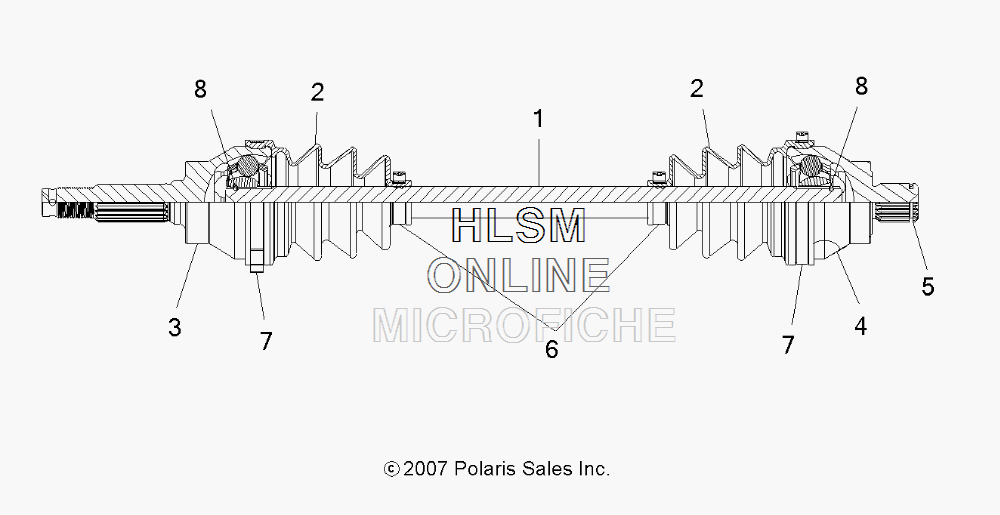

DRIVESHAFT - REAR для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
11332341 SHAFT, REAR (INCL. ALL)SHAFT, REAR (INCL. ALL)
-
22203170 KIT, CV BOOT, CLAMPS, GREASE (INCL. CLAMPS, BOOT, GREASE)KIT, CV BOOT, CLAMPS, GREASE (INCL. CLAMPS, BOOT, GREASE)
-
31590424 KIT, JOINT, OUTER (INCL. JOINT ONLY)KIT, JOINT, OUTER (INCL. JOINT ONLY)
-
41590425 KIT, JOINT, INNER (INCL. JOINT ONLY)KIT, JOINT, INNER (INCL. JOINT ONLY)
-
57081351 CLIP, EXTERNALCLIP, EXTERNAL
-
67081349 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
77081348 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87081350 CLIP, SHAFT, INTERNALCLIP, SHAFT, INTERNAL
