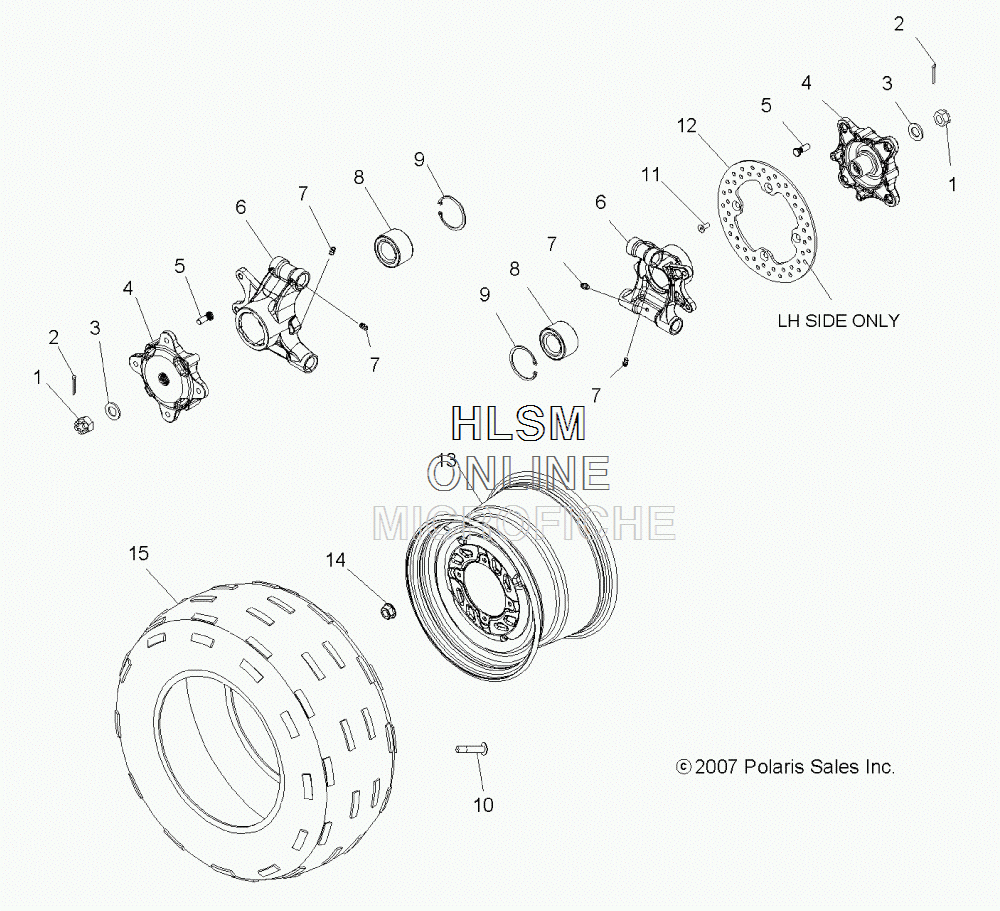

WHEEL - REAR для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
17547337 NUT, CASTLENUT, CASTLE
-
27661404 PIN, COTTERPIN, COTTER
-
37555796 WASHER, CONEWASHER, CONE
-
45135546 HUB, REARHUB, REAR
-
57515513 STUDSTUD
-
65135671 CARRIER, BEARING, REAR, LEFT HANDCARRIER, BEARING, REAR, LEFT HAND
-
77080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
83514634 BEARINGBEARING
-
97710507 RING, RETAININGRING, RETAINING
-
101525017 VALVEVALVE
-
117518451 SCREWSCREW
-
125248213 DISC, BRAKE, REARDISC, BRAKE, REAR
-
131520713-067 RIM, REAR (BLACK)RIM, REAR (BLACK)
-
147547237 NUT, FLANGENUT, FLANGE
-
155413077 TIRE, REAR 22X10-12TIRE, REAR 22X10-12
