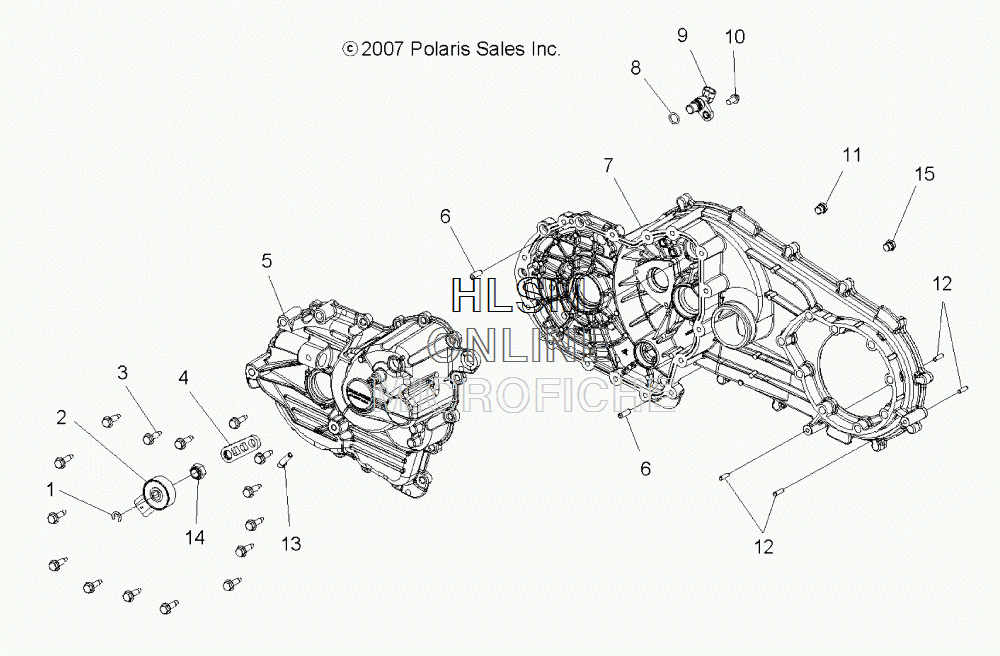

GEARCASE для Polaris HAWKEYE 300 2X4 (A10LB27AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
-1332697 ASM., TRANSMISSION, SHAFT, PARK, 2X4 (INCL. ALL)ASM., TRANSMISSION, SHAFT, PARK, 2X4 (INCL. ALL)
-
13233834 RING, RETAININGRING, RETAINING
-
23233835 SWITCH, ROTARYSWITCH, ROTARY
-
33234898 SCREWSCREW
-
43234587 BELLCRANKBELLCRANK
-
53234448 CASE, RIGHT HANDCASE, RIGHT HAND
-
63234244 PIN, DOWELPIN, DOWEL
-
73234449 CASE, LEFT HANDCASE, LEFT HAND
-
83234302 O-RINGO-RING
-
94012167 SENSOR, SPEEDSENSOR, SPEED
-
103234311 SCREWSCREW
-
113234333 PLUGPLUG
-
123234330 PIN, DOWELPIN, DOWEL
-
133234230 TUBE, VENTTUBE, VENT
-
143234316 NUTNUT
-
153234610 PLUG, DRAIN W/MAGNETPLUG, DRAIN W/MAGNET
