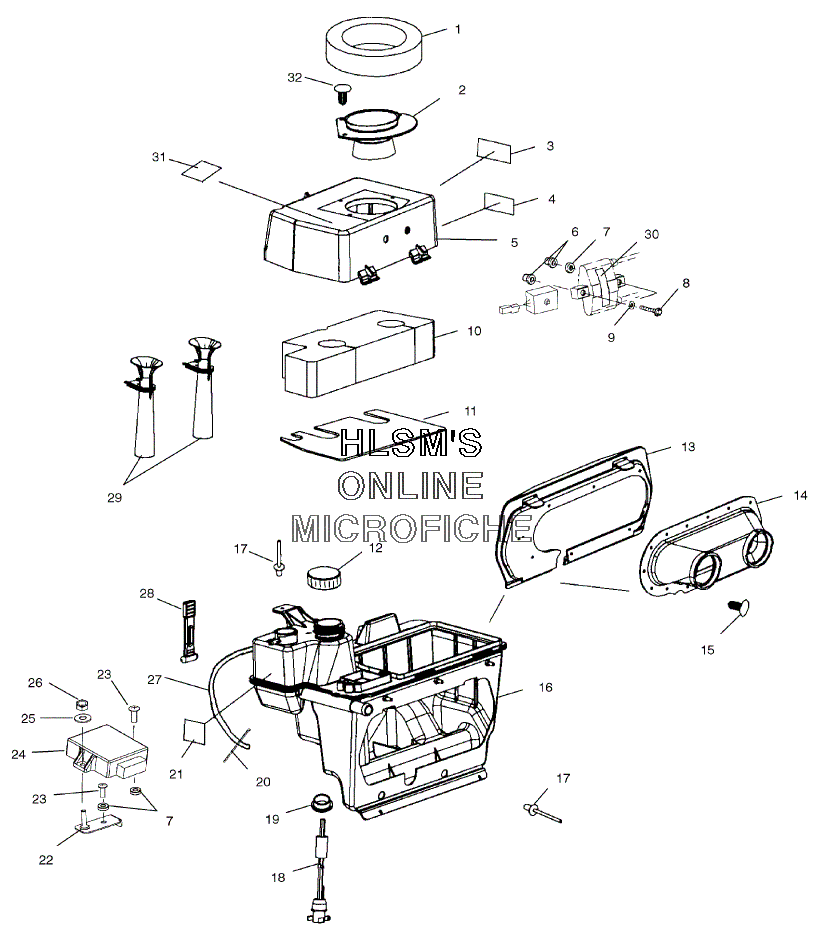

AIR BOX для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIRBOX, CHIMNEY, EDGEFOAM, AIRBOX, CHIMNEY, EDGE
-
25433664 DUCT, AIR, INLETDUCT, AIR, INLET
-
37073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
55433766 COVER, AIRBOX, FORWARD POSTCOVER, AIRBOX, FORWARD POST
-
67547103 NUTNUT
-
77555932 WASHER, NYLONWASHER, NYLON
-
87517610 SCREWSCREW
-
97552604 WASHERWASHER
-
105811979 FOAM, AIRBOX, PLATEFOAM, AIRBOX, PLATE
-
115433765 PLATE, INT., EDGE, FWARD POSTPLATE, INT., EDGE, FWARD POST
-
122511287 CAP, OIL VENTED/CUSTOM COLORCAP, OIL VENTED/CUSTOM COLOR
-
135433717 PLATE, CARBURETOR ADAPTER, 440 EDGEPLATE, CARBURETOR ADAPTER, 440 EDGE
-
145411898 BOOT, CARBURETOR MOUNT, RACERBOOT, CARBURETOR MOUNT, RACER
-
157080431 FASTENER, DARTFASTENER, DART
-
161261010 AIR SILENCER, ASSY.AIR SILENCER, ASSY.
-
177621472 RIVETRIVET
-
184010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
197052247 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
207080138 STRAP PANDUITSTRAP PANDUIT
-
217078147 DECAL, SURGE TANK, ''FULL COLD''DECAL, SURGE TANK, ''FULL COLD''
-
221013201 WELD, BRACKET KOKUSAN, CDI, TPSWELD, BRACKET KOKUSAN, CDI, TPS
-
237512098 SCREWSCREW
-
257555746 BURR, RIVETBURR, RIVET
-
267541925 NUTNUT
-
278450003-1525 FUEL LINE (1/4 ID, 1525 CM.)FUEL LINE (1/4 ID, 1525 CM.)
-
285433150 STRAP, RUBBERSTRAP, RUBBER
-
295433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
307077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
317075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
327670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
Все узлы модели:
- • AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - COMPRESSION DAMPING RESERVOIR
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP/OIL PUMP
