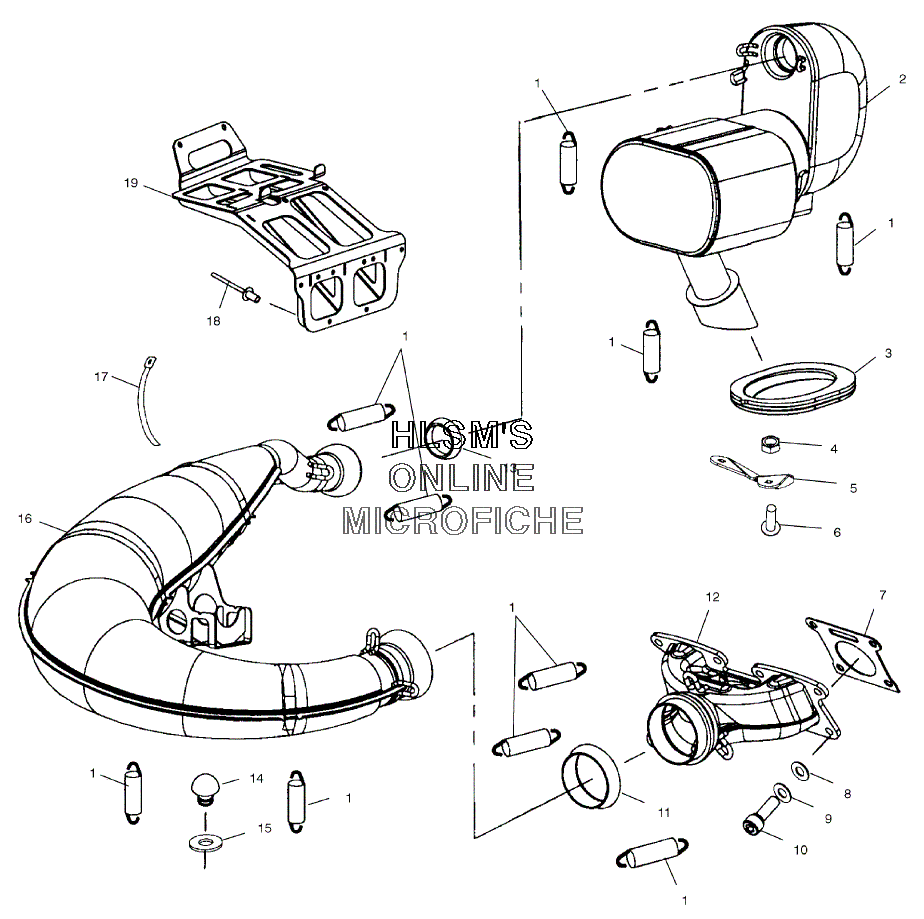

EXHAUST SYSTEM для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
17041687 SPRING, EXHAUSTSPRING, EXHAUST
-
21261009-029 RESONATOR (BLK)RESONATOR (BLK)
-
35411684 BOOT, EXHAUST, OUTLETBOOT, EXHAUST, OUTLET
-
47542321 NUT, LOCKNUT, LOCK
-
55243929 DEFLECTOR, SNOW, EXHAUSTDEFLECTOR, SNOW, EXHAUST
-
67512394 BOLTBOLT
-
75811806 GASKET, EXHAUST 440 RACEGASKET, EXHAUST 440 RACE
-
87556097 WASHER, FLATWASHER, FLAT
-
97556111 WASHER, LOCKWASHER, LOCK
-
107517666 SCREWSCREW
-
113610046 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
121260939-029 MANIFOLD (BLK)MANIFOLD (BLK)
-
133610047 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
145411576 DAMPENER, VIBRATION, W/RIBSDAMPENER, VIBRATION, W/RIBS
-
157556004 WASHERWASHER
-
161261058 TUNED PIPE, ASSY.TUNED PIPE, ASSY.
-
165244358 COVER, TUNED PIPE (TOP)COVER, TUNED PIPE (TOP)
-
165244359 COVER, TUNED PIPE (BOTTOM)COVER, TUNED PIPE (BOTTOM)
-
165830199 MATTE, SOUND (TOP)MATTE, SOUND (TOP)
-
165830201 MATTE, SOUND, EDGE (BOTTOM)MATTE, SOUND, EDGE (BOTTOM)
-
177080741 CLAMP, WORM,CLAMP, WORM,
-
177080811 CLAMP, WORM DRIVE (.44WX6.50 DIA)CLAMP, WORM DRIVE (.44WX6.50 DIA)
-
177080812 CLAMP, WORM DRIVE (.44WX3.75 DIA)CLAMP, WORM DRIVE (.44WX3.75 DIA)
-
187661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
191261008-029 WELD, BRACKET CHASSIS/RESONATORWELD, BRACKET CHASSIS/RESONATOR
