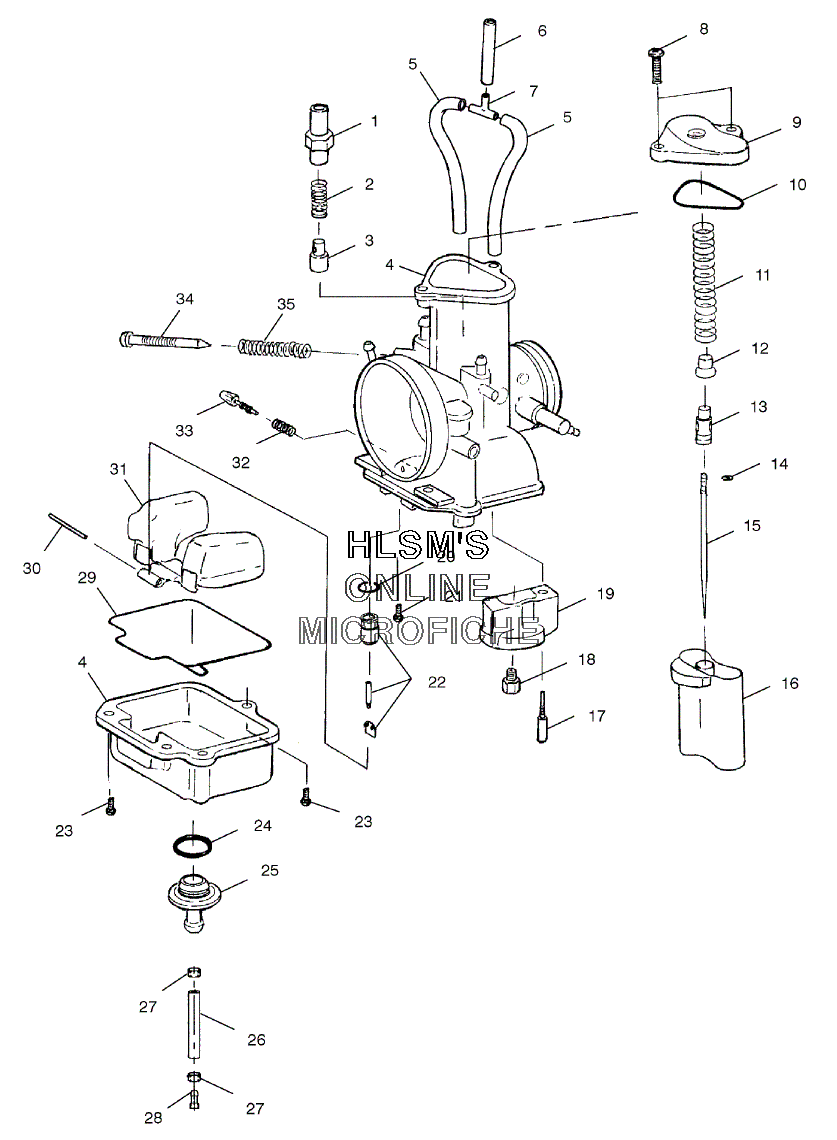

CARBURETOR ASSEMBLY для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
13131086 HOLDER, GUIDEHOLDER, GUIDE
-
23130829 SPRING, STARTERSPRING, STARTER
-
33131100 PLUNGERPLUNGER
-
41253299 CARBURETOR, ASSY. (34MM) (INCL. 1, 3, 8, 25, 29, 35)CARBURETOR, ASSY. (34MM) (INCL. 1, 3, 8, 25, 29, 35)
-
53131235 HOSE, VM36/106HOSE, VM36/106
-
63130994 HOSEHOSE
-
73131237 T-FITTING (792, 23040)T-FITTING (792, 23040)
-
83131066 SCREWSCREW
-
93131136 CAP, MIXING CHAMBER (TOP)CAP, MIXING CHAMBER (TOP)
-
103131138 O-RINGO-RING
-
113131106 SPRINGSPRING
-
123131054 SPRING, PV, RINGSPRING, PV, RING
-
133131053 GUIDE HOLDERGUIDE HOLDER
-
143130868 E-RINGE-RING
-
153131241 NEEDLE, JETNEEDLE, JET
-
163131042 PISTON VALVE CUTAWAYPISTON VALVE CUTAWAY
-
173131096 JET, PILOT (#22.5)JET, PILOT (#22.5)
-
183130131 JET, MAIN HEXAGON HD (#280)JET, MAIN HEXAGON HD (#280)
-
193131056 HOLDERHOLDER
-
203130949 WASHERWASHER
-
213131089 SCREWSCREW
-
223131062 NEEDLE VALVE ASSY.NEEDLE VALVE ASSY.
-
233130933 SCREWSCREW
-
243130239 O-RINGO-RING
-
255020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
268350017 FUEL LINE, ETHER (RED) (5/16'')FUEL LINE, ETHER (RED) (5/16'')
-
277080003 CLAMP, HOSECLAMP, HOSE
-
285431893 PLUG, TRAPPLUG, TRAP
-
293131105 O-RINGO-RING
-
303131060 FLOAT PINFLOAT PIN
-
313131102 FLOATFLOAT
-
323130407 SPRING, AIR ADJUSTERSPRING, AIR ADJUSTER
-
333131063 SCREW, AIRSCREW, AIR
-
343131088 ADJUSTERADJUSTER
-
353131087 SPRINGSPRING
