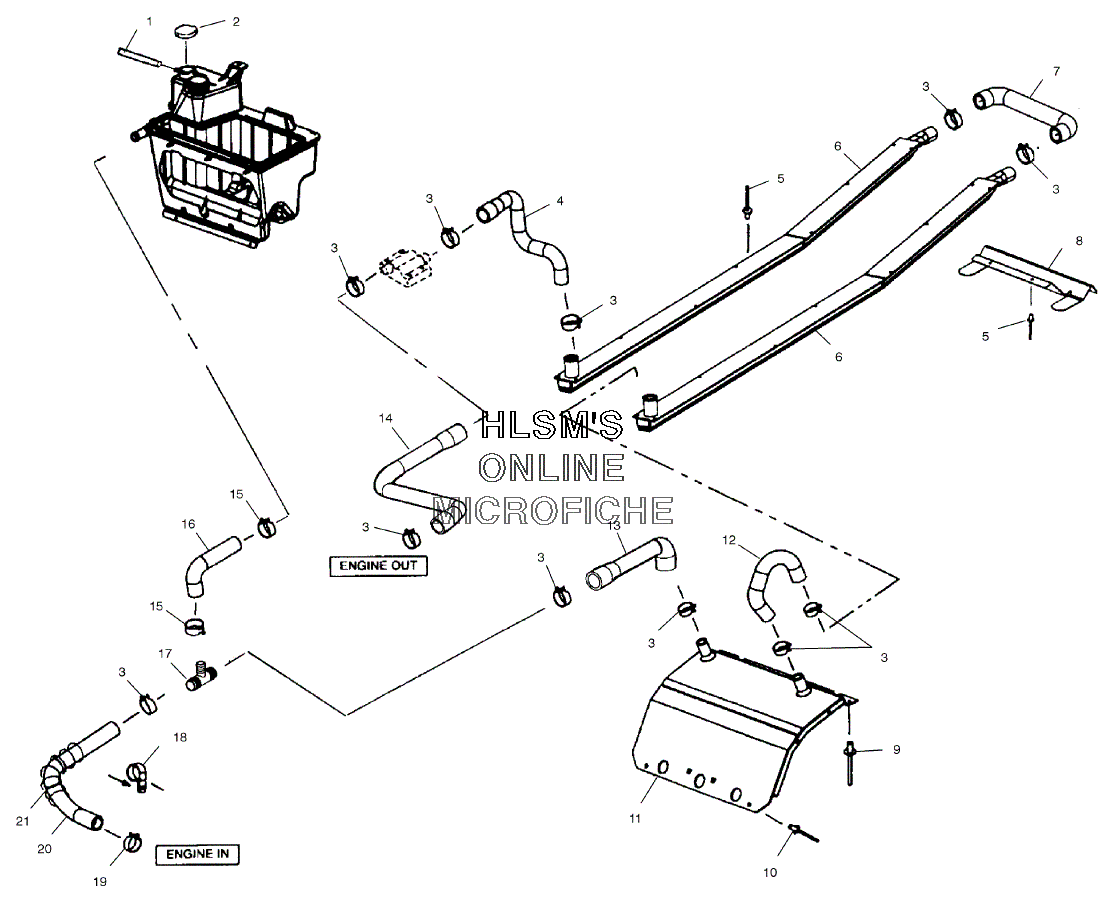

COOLING SYSTEM для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
18450003-1525 FUEL LINE (1/4 ID, 1525 CM.)FUEL LINE (1/4 ID, 1525 CM.)
-
22511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
37080844 SPRINGBAND, CLAMP (35/12) (BLK)SPRINGBAND, CLAMP (35/12) (BLK)
-
45411852 HOSE, STRIP COOLER/BRAKEHOSE, STRIP COOLER/BRAKE
-
57621432 RIVET (3/16X.402)RIVET (3/16X.402)
-
61240075 WEAR STRIP, COOLERWEAR STRIP, COOLER
-
75411854 HOSE, CROSSOVER, WEAR STRIPHOSE, CROSSOVER, WEAR STRIP
-
85244284 PROTECTOR, HOSEPROTECTOR, HOSE
-
97661639 RIVET (-3/16-.214-.420)RIVET (-3/16-.214-.420)
-
107661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
112520193 COOLER, WELD (CENTER)COOLER, WELD (CENTER)
-
125411853 HOSE, CENTER/STRIP COOLERHOSE, CENTER/STRIP COOLER
-
135411611 HOSE, BYPASS OUT/TEE INHOSE, BYPASS OUT/TEE IN
-
145411464 HOSE, ENGINE OUTER/BRAKE COOLERHOSE, ENGINE OUTER/BRAKE COOLER
-
157080841 SPRINGBAND, CLAMP (27/12) (GREEN)SPRINGBAND, CLAMP (27/12) (GREEN)
-
165411447 HOSE, BOTTLE TO ''T''HOSE, BOTTLE TO ''T''
-
177052260 CONNECTOR, TEE, BARBED (1X1X3/4'')CONNECTOR, TEE, BARBED (1X1X3/4'')
-
187080908 CLAMP, HOSE VNL ECOATED (1.375)CLAMP, HOSE VNL ECOATED (1.375)
-
197080560 CLAMP, S.S.CLAMP, S.S.
-
205411880 HOSE, PUMP IN/TEEHOSE, PUMP IN/TEE
-
217041910 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
