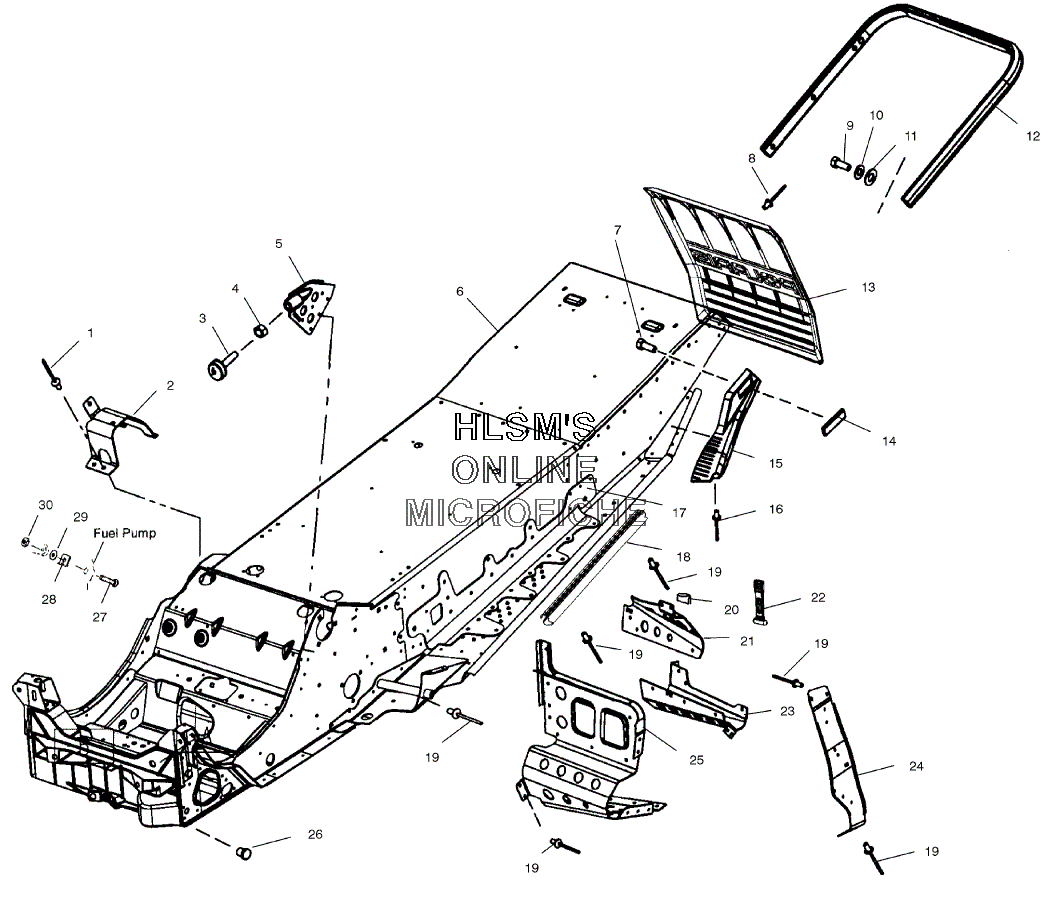

FRAME - CHASSIS для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
17621453 RIVETRIVET
-
25243061 BRACKET, JACKSHAFT SHIELDBRACKET, JACKSHAFT SHIELD
-
33021104 STOP, TORQUE COURSE (3/8)STOP, TORQUE COURSE (3/8)
-
47542404 NUTNUT
-
51013067 WELD, TORQUE STOPWELD, TORQUE STOP
-
61013131 REPLACEMENT CHASSIS KIT (INCL. 17)REPLACEMENT CHASSIS KIT (INCL. 17)
-
77512068 SCREWSCREW
-
87621418 POP RIVETPOP RIVET
-
97512240 BOLTBOLT
-
107552801 LOCK WASHERLOCK WASHER
-
117558301 WASHERWASHER
-
122632165 BUMPER (REAR)BUMPER (REAR)
-
135433521-1106 FLAP, SNOW, EDGE (BLACK W/CHROME)FLAP, SNOW, EDGE (BLACK W/CHROME)
-
142670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
155433519 SKIRT, SNOW EDGE (LEFT) (BLK)SKIRT, SNOW EDGE (LEFT) (BLK)
-
155433520 SNOWSKIRT/REFLECTOR ASSY. (RIGHT) (BLK)SNOWSKIRT/REFLECTOR ASSY. (RIGHT) (BLK)
-
167621472 RIVETRIVET
-
175244060 BRACE, TUNNEL, CORNER, FSHBONE (LEFT)BRACE, TUNNEL, CORNER, FSHBONE (LEFT)
-
175244061 BRACE, TUNNEL, CORNER, FSHBONE (RIGHT)BRACE, TUNNEL, CORNER, FSHBONE (RIGHT)
-
185244351 GRIP, TUNNEL ROLLGRIP, TUNNEL ROLL
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
205521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
215243939 MOUNT, CONSOLE (LEFT)MOUNT, CONSOLE (LEFT)
-
215243940 MOUNT, CONSOLE (RIGHT)MOUNT, CONSOLE (RIGHT)
-
225433150 STRAP, RUBBERSTRAP, RUBBER
-
235243153 FOOTREST TOE CLIP (LEFT) (UPPER)FOOTREST TOE CLIP (LEFT) (UPPER)
-
235243154 FOOTREST TOE CLIP (RIGHT) (UPPER)FOOTREST TOE CLIP (RIGHT) (UPPER)
-
245242741 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
245242742 SUPPORT, FOOTREST (RIGHTT)SUPPORT, FOOTREST (RIGHTT)
-
255242739 FOOTREST (LEFT)FOOTREST (LEFT)
-
255242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
267080416 PLUG, HOLEPLUG, HOLE
-
277512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
287670021 SPEED NUTSPEED NUT
-
297555932 WASHER, NYLONWASHER, NYLON
-
307542122 NUT, LOCKNUT, LOCK
