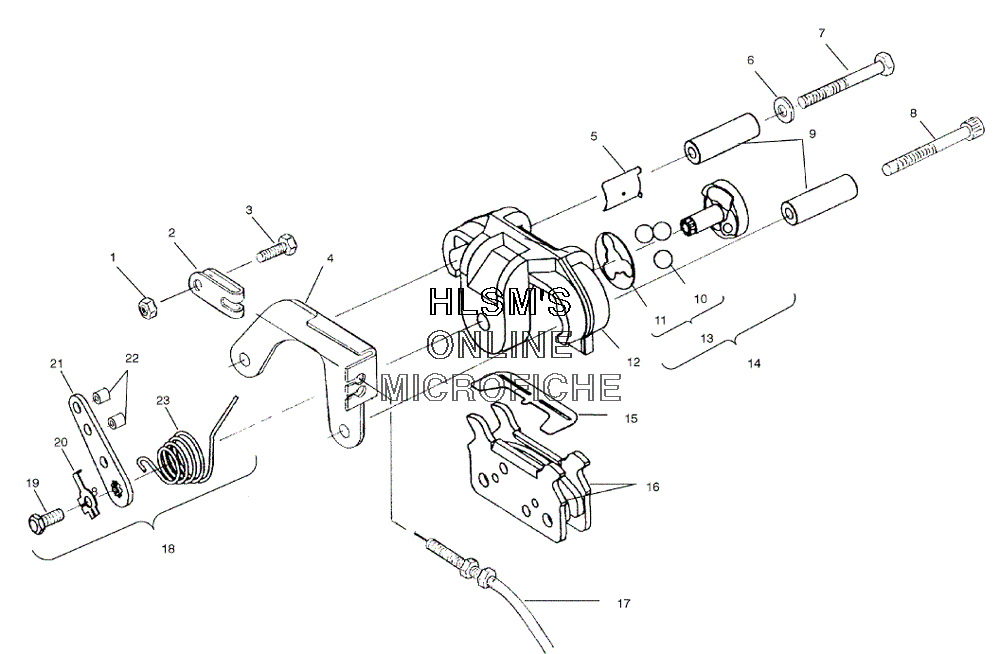

BRAKE ASSEMBLY для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17542103 NUT, LOCKNUT, LOCK
-
27080316 PIN, CLEVISPIN, CLEVIS
-
37512240 BOLTBOLT
-
45241868-067 BRACKET, BRAKE (BLACK)BRACKET, BRAKE (BLACK)
-
67555734 WASHERWASHER
-
77517346 SCREWSCREW
-
87517340 SCREWSCREW
-
92200992 BUSHING MOUNT KITBUSHING MOUNT KIT
-
122200993 CALIPER CASTING KITCALIPER CASTING KIT
-
132200994 BALL BEARING KIT (INCL. 10, 11)BALL BEARING KIT (INCL. 10, 11)
-
142200989 CW.ROTOR KIT (INCL. 10, 11)CW.ROTOR KIT (INCL. 10, 11)
-
152200990 PAD, SPRING AND CLIP KIT (INCL. 5)PAD, SPRING AND CLIP KIT (INCL. 5)
-
162201220 BRAKE PAD,TYPE 81 MECH, KIT (SET OF 2) (INCL. 5, 15, 20)BRAKE PAD,TYPE 81 MECH, KIT (SET OF 2) (INCL. 5, 15, 20)
-
177080666 CABLE, BRAKE, WIDETRAKCABLE, BRAKE, WIDETRAK
-
182200991 LEVER AND SPRING KIT (INCL. 19, 20, 21, 23)LEVER AND SPRING KIT (INCL. 19, 20, 21, 23)
-
225332795 BUSHINGBUSHING
-
231910399 CALIPER-M10A TYPE 81 WIDETRAK (INCL. 5, 9-11, 14-16, 18, 23)CALIPER-M10A TYPE 81 WIDETRAK (INCL. 5, 9-11, 14-16, 18, 23)
