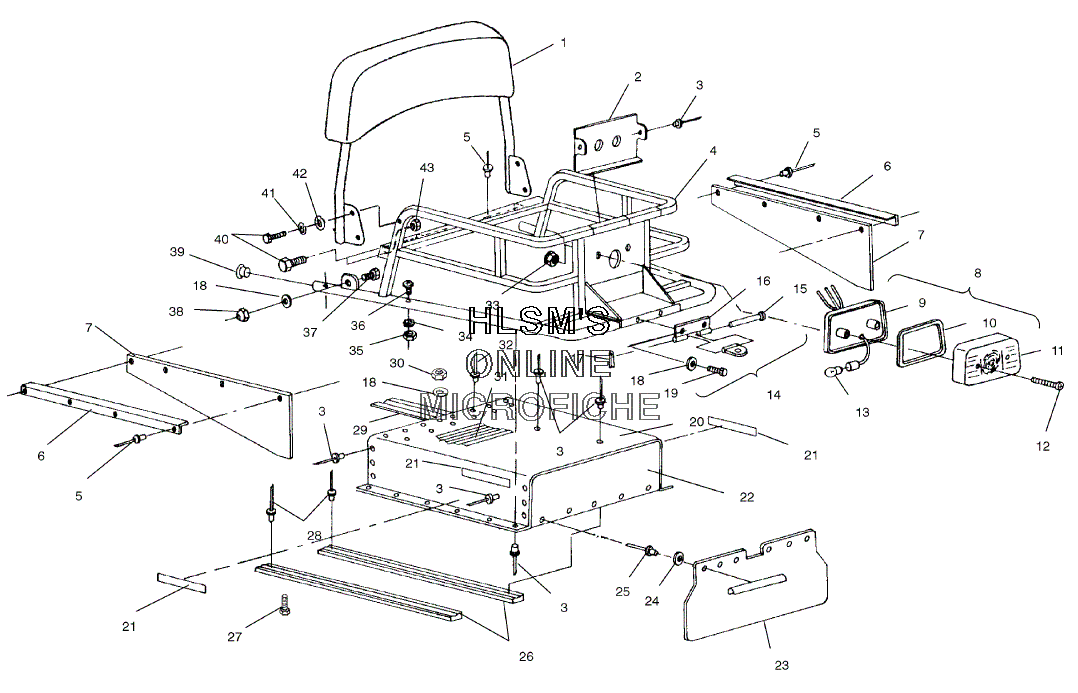

TUNNEL EXTENSION ASSEMBLY W/RACK для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
12682143 COVER, BACKRESTCOVER, BACKREST
-
12682144 BACKREST ASSY. (INCL. 2)BACKREST ASSY. (INCL. 2)
-
25222868-067 SHIELD, TAILLIGHTSHIELD, TAILLIGHT
-
37661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
41012076-067 RACK, 'LX' (BLACK)RACK, 'LX' (BLACK)
-
57621462 RIVETRIVET
-
65220497-067 BRKT, SNOW-FLAPBRKT, SNOW-FLAP
-
75810222 SNOW, FLAP-SIDESNOW, FLAP-SIDE
-
82432035 TAILLIGHT ASSY. (INCL. 9-13)TAILLIGHT ASSY. (INCL. 9-13)
-
94032047 BASE AND SOCKET TAILLIGHTBASE AND SOCKET TAILLIGHT
-
104032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
114032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
124032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
134030063 BULB, TAILIGHT, EXT.DUTYBULB, TAILIGHT, EXT.DUTY
-
141011624-067 HITCH WELD (BLACK)HITCH WELD (BLACK)
-
142870708 HITCHKIT, L.T./STARTRAK (INCL. 15-19)HITCHKIT, L.T./STARTRAK (INCL. 15-19)
-
157662209 CLEVIS PINCLEVIS PIN
-
161011518-067 HITCH WELD (BLACK.) (U.S.)HITCH WELD (BLACK.) (U.S.)
-
177661401 COTTER, PINCOTTER, PIN
-
187552603 WASHERWASHER
-
197512490 SCREWSCREW
-
205240516-067 EXTRUSION, TUNNEL (REAR/BLACK)EXTRUSION, TUNNEL (REAR/BLACK)
-
212670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
225240530-067 PANEL-TUNNEL BACK W/T (BLACK)PANEL-TUNNEL BACK W/T (BLACK)
-
235410553 FLAP, SNOWFLAP, SNOW
-
247556044 WASHERWASHER
-
257621418 POP, RIVETPOP, RIVET
-
265222448 STRIP, WEAR EXT.STRIP, WEAR EXT.
-
277511930 SCREWSCREW
-
287621449 RIVETRIVET
-
295222323 BRACKET, HARNESS PROTECTORBRACKET, HARNESS PROTECTOR
-
307541906 NUT, FLEX LOCNUT, FLEX LOC
-
315410560 PROTECTOR, BEDPROTECTOR, BED
-
327621429 RIVETRIVET
-
337670054 NUT, PUSH-ONNUT, PUSH-ON
-
347558301 WASHERWASHER
-
357542122 NUT, LOCKNUT, LOCK
-
367517377 SCREWSCREW
-
377515522 BOLTBOLT
-
387542458 NUTNUT
-
395430713 PLUGPLUG
-
407515341 SCREWSCREW
-
417552901 LOCK, WASHERLOCK, WASHER
-
427555843 WASHER, WROUGHTWASHER, WROUGHT
-
437542324 NUTNUT
