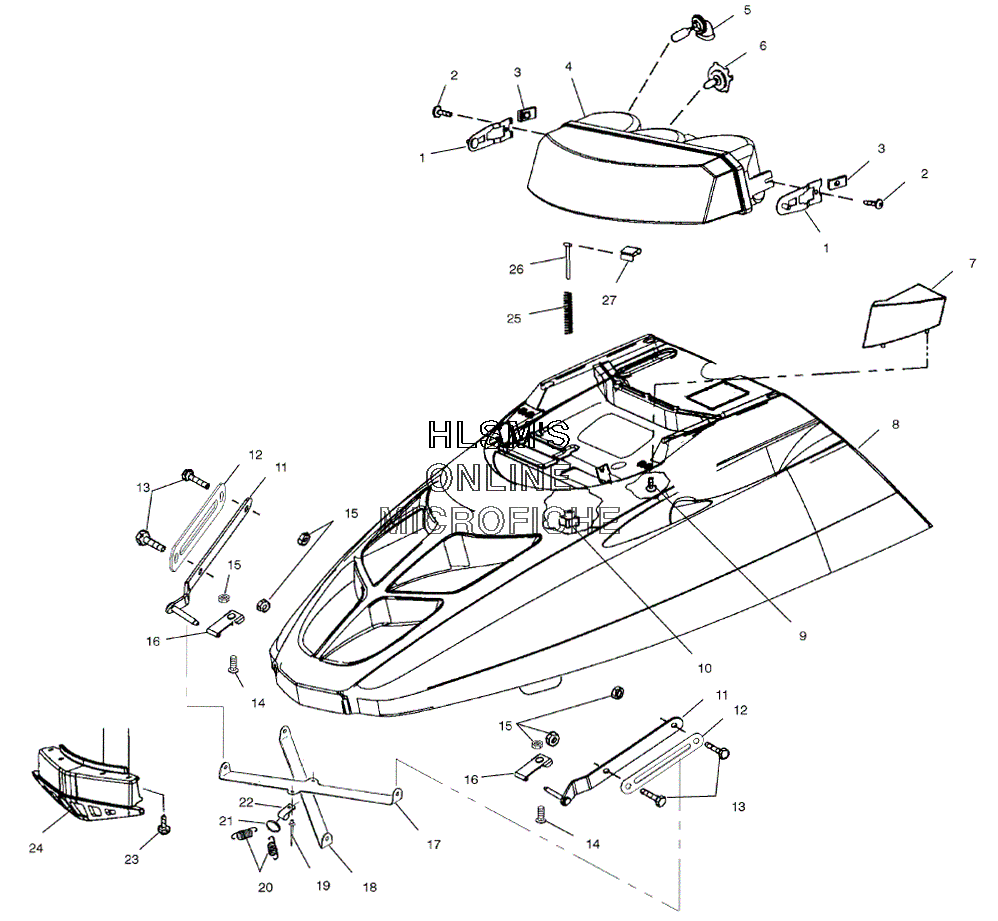

HOOD ASSEMBLY W/ HEADLIGHT для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD HEASDLIGHTSMOUNT, WELD HEASDLIGHTS
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)HEADLAMP ASSY., THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT (50 WATT)BULB, HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ INDYBULB, QUARTZ INDY
-
75431855 LENS, REFLECTOR (CLEAR/LEFT)LENS, REFLECTOR (CLEAR/LEFT)
-
75431856 LENS, REFLECTOR (CLEAR/RIGHT)LENS, REFLECTOR (CLEAR/RIGHT)
-
82632096-210 HOOD, EMERALD (INCL. FOAM/FOIL)HOOD, EMERALD (INCL. FOAM/FOIL)
-
97511953 SCREWSCREW
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGBKNOB, HEADLIGHT ADJUST LOCKINGB
-
111012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
111012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
125242948 PLATE, BOLTPLATE, BOLT
-
137515184 BOLTBOLT
-
147515203 BOLTBOLT
-
157542122 NUT, LOCKNUT, LOCK
-
165242678 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
175242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
185242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
207041732 SPRING, EXT.SPRING, EXT.
-
217041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
227080372 CLAMP, RETAINERCLAMP, RETAINER
-
237517441 SCREWSCREW
-
245243393 DEFLECTOR, AIRDEFLECTOR, AIR
-
257041308 SPRING, HEADLIGHTS ADJUSTSPRING, HEADLIGHTS ADJUST
-
267517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
277670040 CLIP-U, TYPECLIP-U, TYPE
