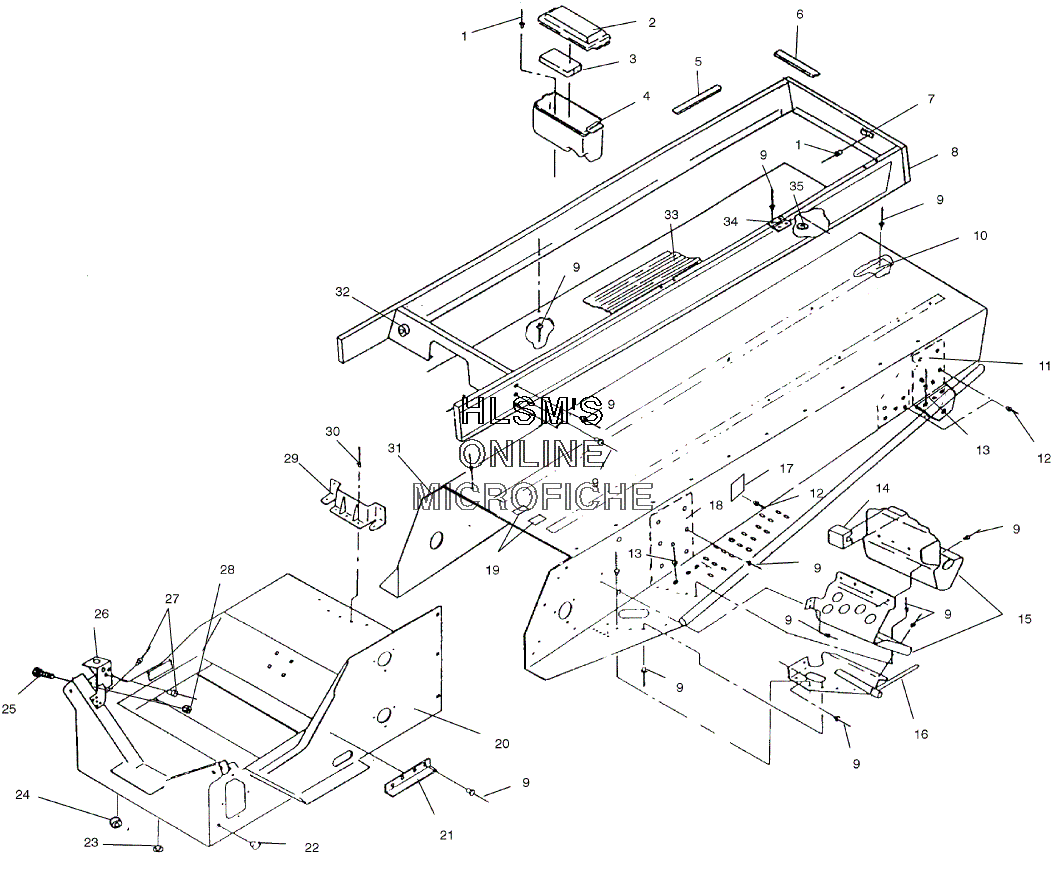

TUNNEL ASSEMBLY для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25430719 COVER, TOOL BOXCOVER, TOOL BOX
-
35811051 FOAM, TOOL BOXFOAM, TOOL BOX
-
45430716 BOX, TOOLBOX, TOOL
-
55410562 SEAL, SEAT RISERSEAL, SEAT RISER
-
65410563 SEAL, SHORT SEAT RISERSEAL, SHORT SEAT RISER
-
77080393 CLIP, HALFCLIP, HALF
-
81011947-067 RISER, SEAT ASSY.RISER, SEAT ASSY.
-
97661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
105510233 STRIP, WEARSTRIP, WEAR
-
111012387-067 PAD, HOOD SUSPENSION (LEFT)PAD, HOOD SUSPENSION (LEFT)
-
111012388-067 PAD, HOOD SUSPENSION (RIGHT)PAD, HOOD SUSPENSION (RIGHT)
-
127661837 RIVETRIVET
-
137661844 RIVET, SEMI-TUBERIVET, SEMI-TUBE
-
145521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
151012734 FOOTREST ASSY., LX (LEFT)FOOTREST ASSY., LX (LEFT)
-
151012735 FOOTREST ASSY., LX (RIGHT)FOOTREST ASSY., LX (RIGHT)
-
161012905-067 SUPPORT, TRAILING ARM (LEFT/BLACK)SUPPORT, TRAILING ARM (LEFT/BLACK)
-
161012906-067 SUPPORT, TRAILING ARM (RIGHT/BLACK)SUPPORT, TRAILING ARM (RIGHT/BLACK)
-
175211220-067 PLATE, TUNNEL CARRIER (BLACK)PLATE, TUNNEL CARRIER (BLACK)
-
185211323-067 BRACKET, SUSPENSION (BLACK/FRONT)BRACKET, SUSPENSION (BLACK/FRONT)
-
197073978 DECAL, TUNNEL STRIP (TOP)DECAL, TUNNEL STRIP (TOP)
-
201012728-067 BULKHEAD (BLACK)BULKHEAD (BLACK)
-
215222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
227080416 PLUG, HOLEPLUG, HOLE
-
237080398 PLUG, HOLEPLUG, HOLE
-
247080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
257512307 SCREWSCREW
-
277661639 RIVETRIVET
-
287542321 NUT, LOCKNUT, LOCK
-
295221932-067 BRACKET, GAS TANKBRACKET, GAS TANK
-
307621301 RIVETRIVET
-
311012402 TUNNEL (LX) (INCL. 9-11, 18)TUNNEL (LX) (INCL. 9-11, 18)
-
327080392 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
335410561 PROTECTOR, RISERPROTECTOR, RISER
-
347020023 HINGE, FLATHINGE, FLAT
-
355410437 GROMMETGROMMET
