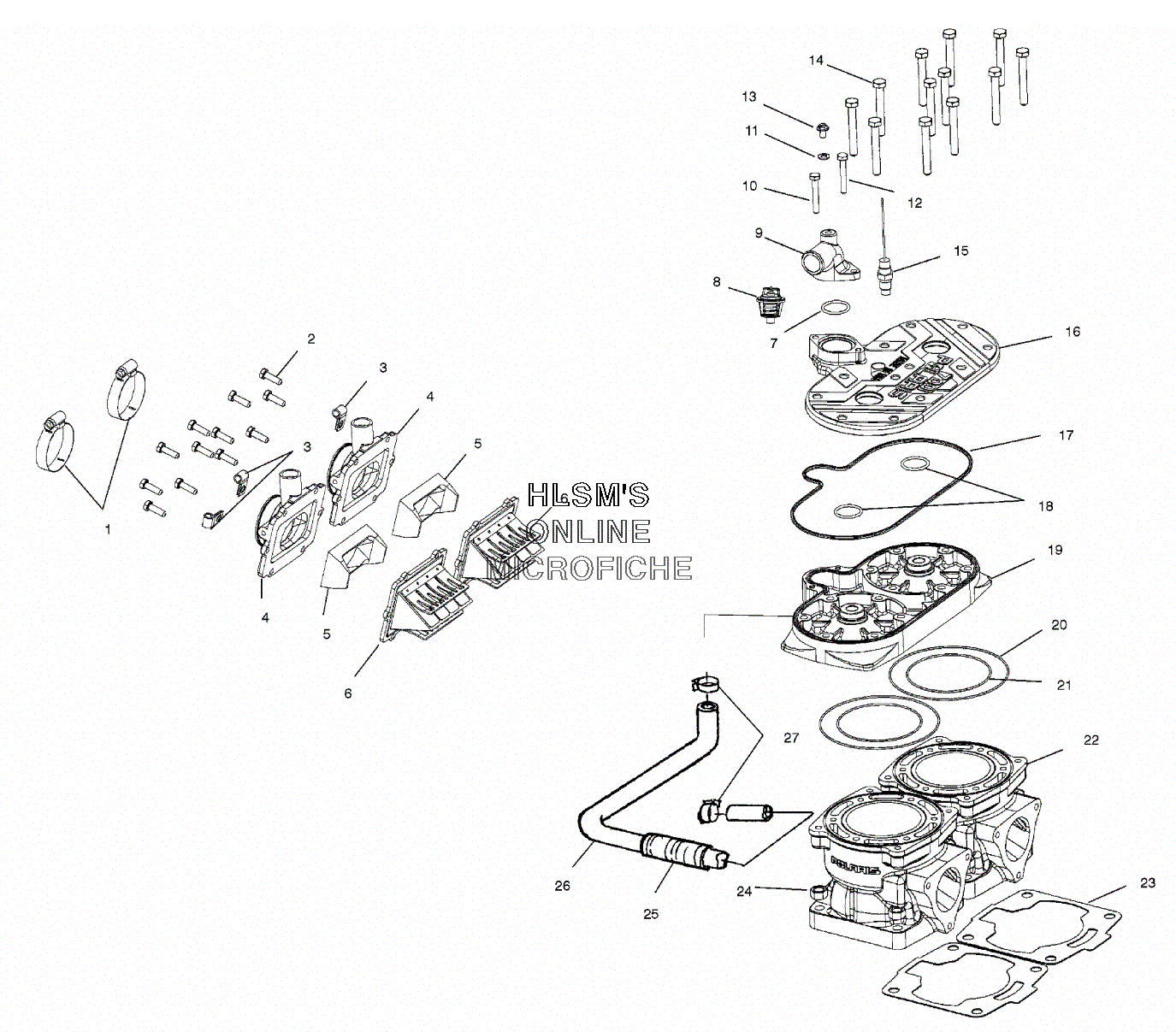

CYLINDER ASSEMBLY для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253289 ADAPTER, CARBADAPTER, CARB
-
55433151 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
61201843 VALVE, REEDVALVE, REED
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT (120ШF)THERMOSTAT (120ШF)
-
95630992 COVER, THERMOSTATCOVER, THERMOSTAT
-
107516822 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127516818 SCREWSCREW
-
137517679 SCREWSCREW
-
147517534 SCREWSCREW
-
154010251 SENSOR, THERMISTERSENSOR, THERMISTER
-
165631047-093 COVER, HEAD (74.5MM)COVER, HEAD (74.5MM)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021125 HEAD, CYLINDER (74.5MM)HEAD, CYLINDER (74.5MM)
-
205410931 O-RINGO-RING
-
215411044 O-RINGO-RING
-
223021008 CYLINDER (74.5 MM)CYLINDER (74.5 MM)
-
235811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
247547013 NUTNUT
-
255521398-96 CONDUIT, FLEX (.75''ID) (OPT)CONDUIT, FLEX (.75''ID) (OPT)
-
265411536 HOSE, BYPASSHOSE, BYPASS
-
277080810 CLAMP-3 TONGCLAMP-3 TONG
