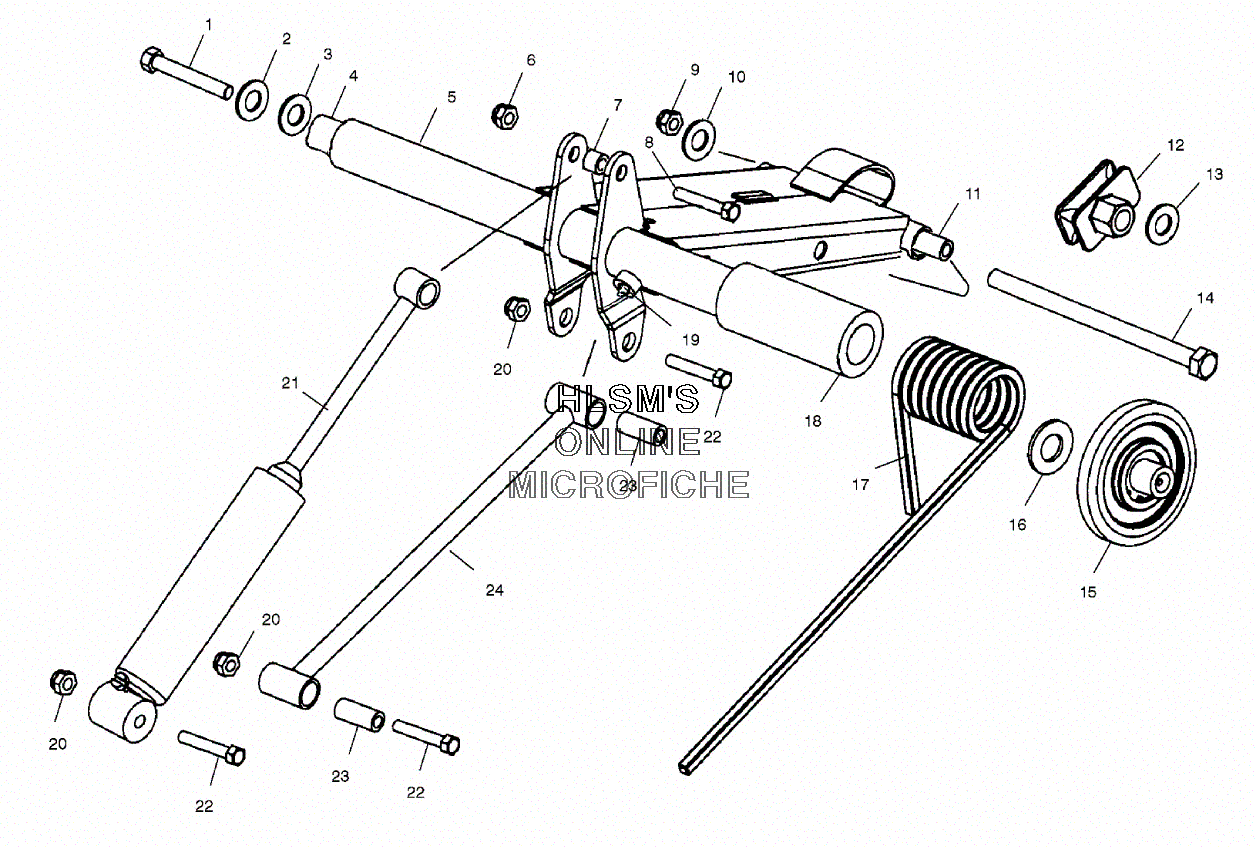

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 RMK 136'' (S01SR6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45131450 SHAFTSHAFT
-
51541432-067 WELD, TORQUE ARM (BLACK/REAR)WELD, TORQUE ARM (BLACK/REAR)
-
67542324 NUTNUT
-
75333030 BUSHING, SHOCK (REAR)BUSHING, SHOCK (REAR)
-
75430537 BUSHINGBUSHING
-
87512329 BOLTBOLT
-
97547064 NUTNUT
-
107558402 WASHER, STEELWASHER, STEEL
-
115333483 TUBETUBE
-
125432983 ROLLER, SPRING ADJUST SQUARE (X10)ROLLER, SPRING ADJUST SQUARE (X10)
-
137080394 CLIPCLIP
-
147517757 SCREWSCREW
-
151541285 WHEEL, CARRIER W/COLLARWHEEL, CARRIER W/COLLAR
-
167556301 MACHINERY, BUSHINGMACHINERY, BUSHING
-
177041856-067 SPRING, TORSION (.359/85) (LEFT/BLACK)SPRING, TORSION (.359/85) (LEFT/BLACK)
-
177041857-067 SPRING, TORSION (.359/85) (RIGHT/BLACK)SPRING, TORSION (.359/85) (RIGHT/BLACK)
-
177041629-067 SPRING, TORSION (.359/77) (LEFT/BLACK)SPRING, TORSION (.359/77) (LEFT/BLACK)
-
177041630-067 SPRING, TORSION (.359/77) (RIGHT/BLACK)SPRING, TORSION (.359/77) (RIGHT/BLACK)
-
177041631-067 SPRING, TORSION (.375/77) (LEFT/BLACK)SPRING, TORSION (.375/77) (LEFT/BLACK)
-
177041632-067 SPRING-TORSION (.375/77) (RIGHT/BLACK)SPRING-TORSION (.375/77) (RIGHT/BLACK)
-
185521475 TUBE, SPRINGTUBE, SPRING
-
197080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
207542439 NUT, NYLOKNUT, NYLOK
-
217041757 SHOCK, ADJUST TRACK (REAR)SHOCK, ADJUST TRACK (REAR)
-
227515415 BOLTBOLT
-
235010252 BUSHINGBUSHING
-
241541306-067 ROD, SHOCK (BLACK)ROD, SHOCK (BLACK)
